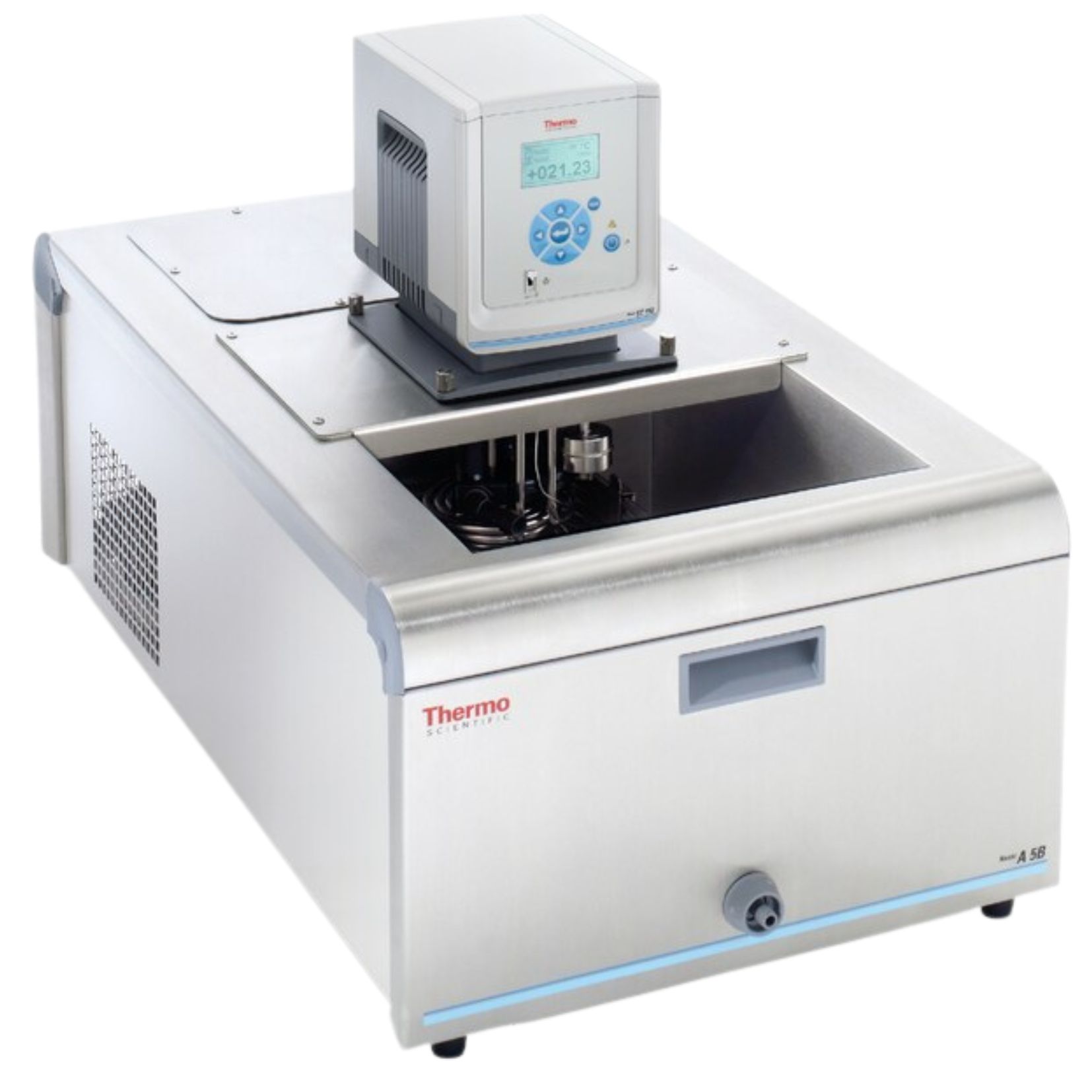

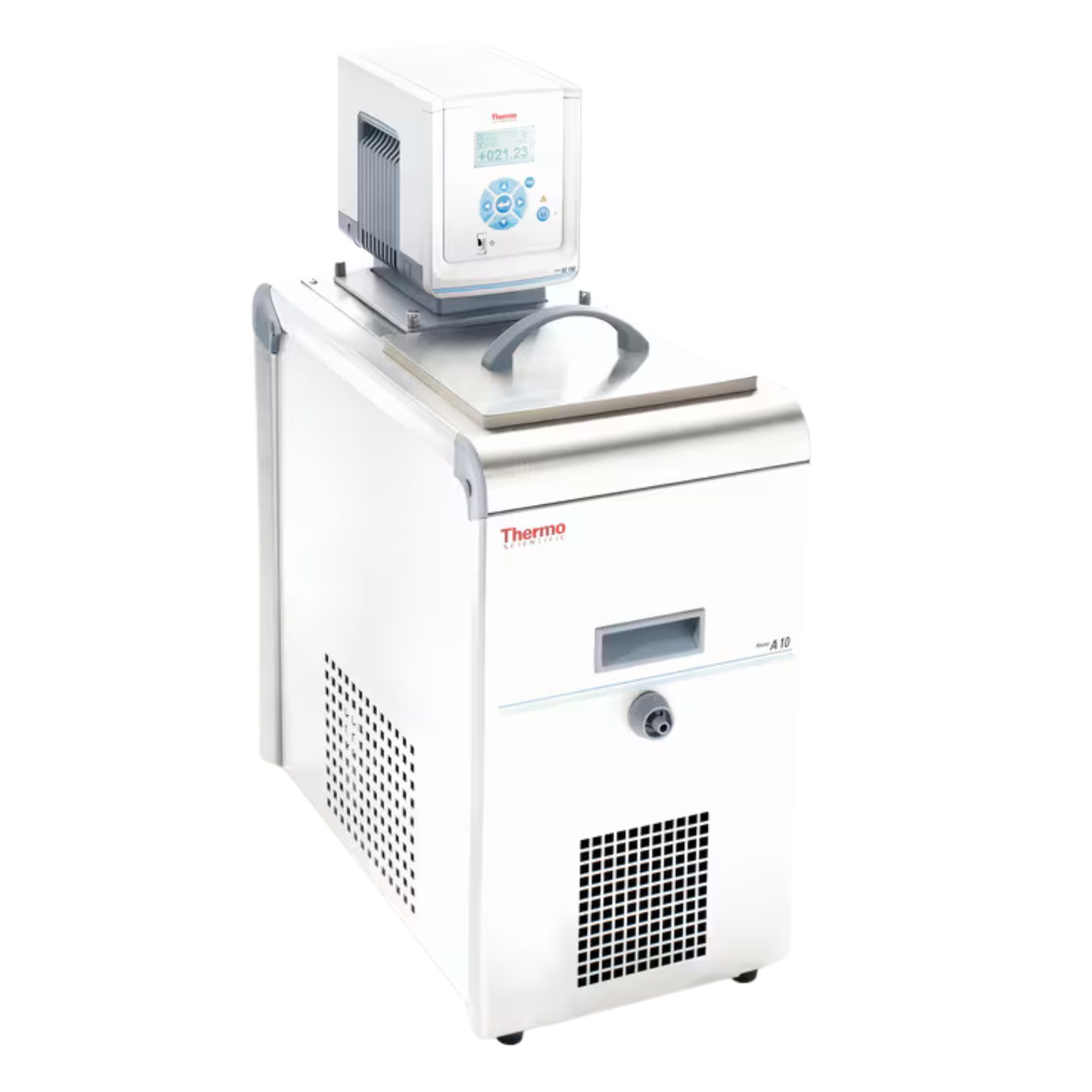

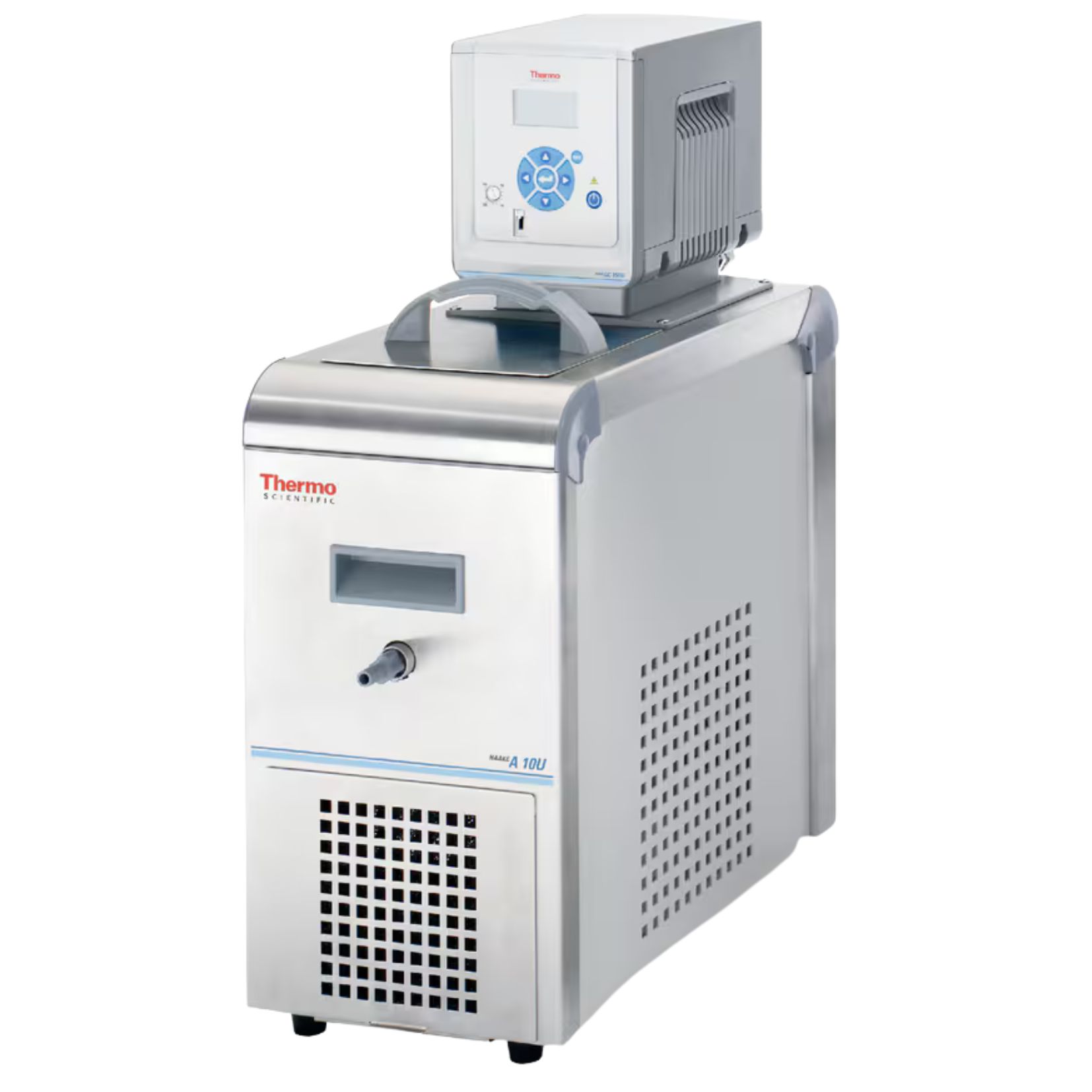

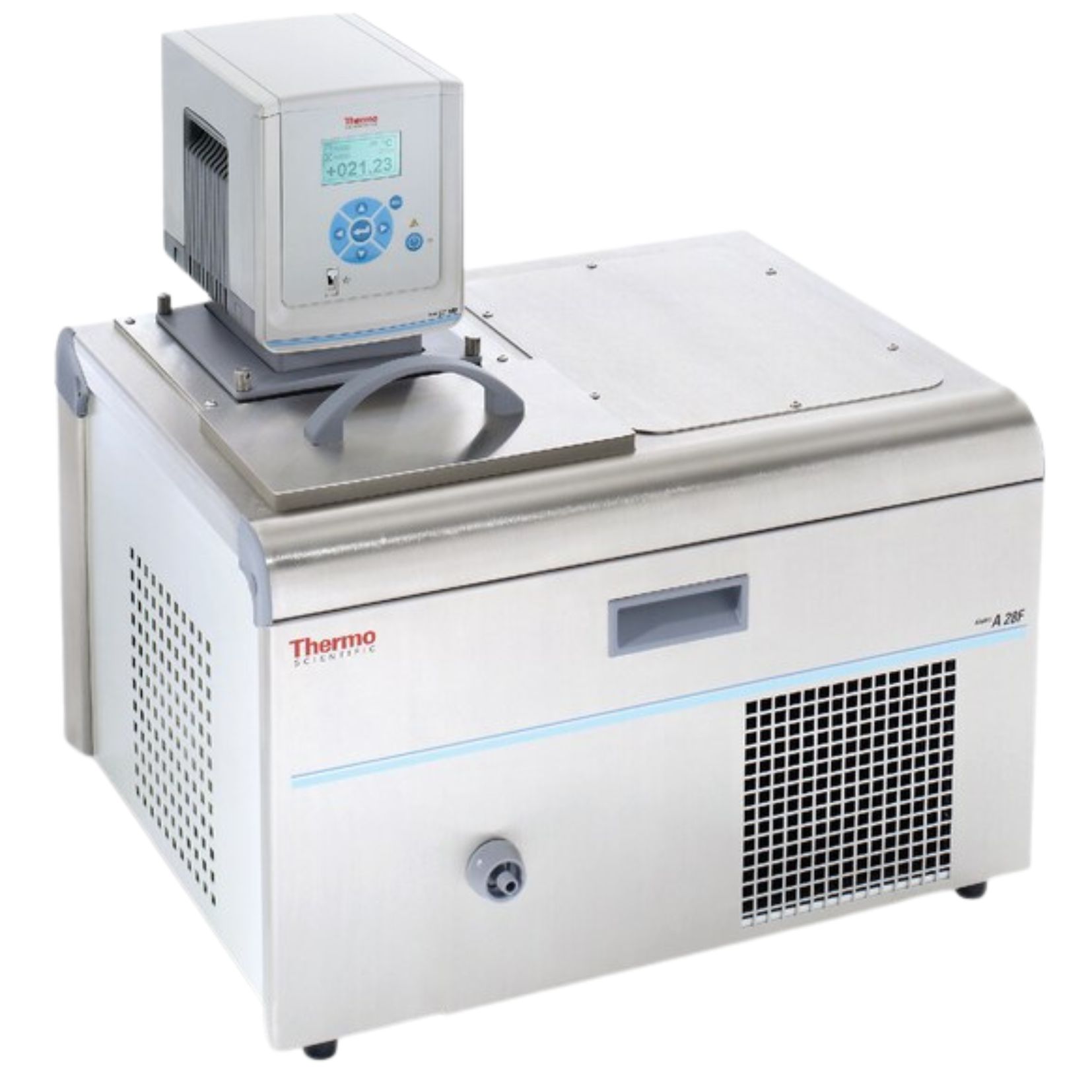

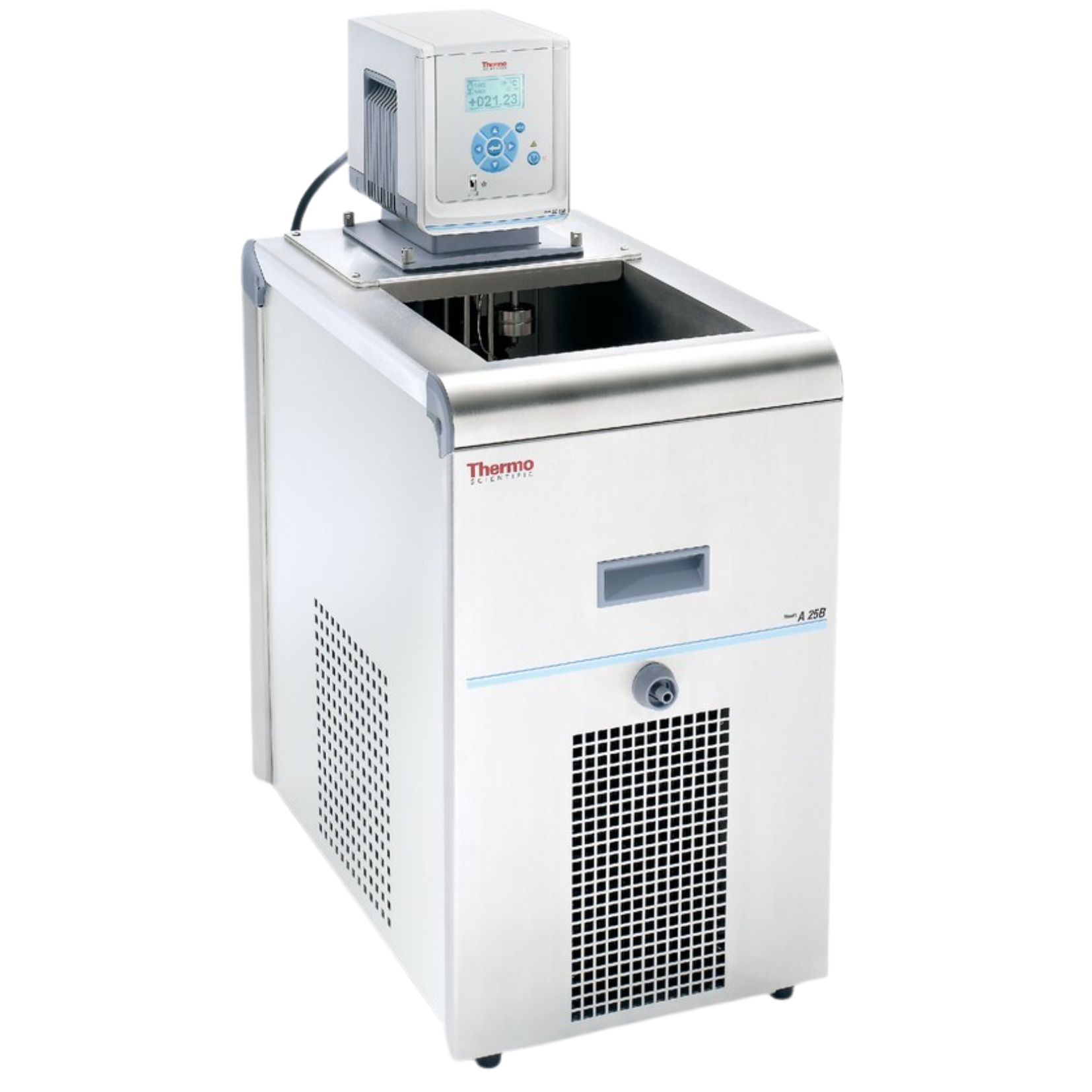

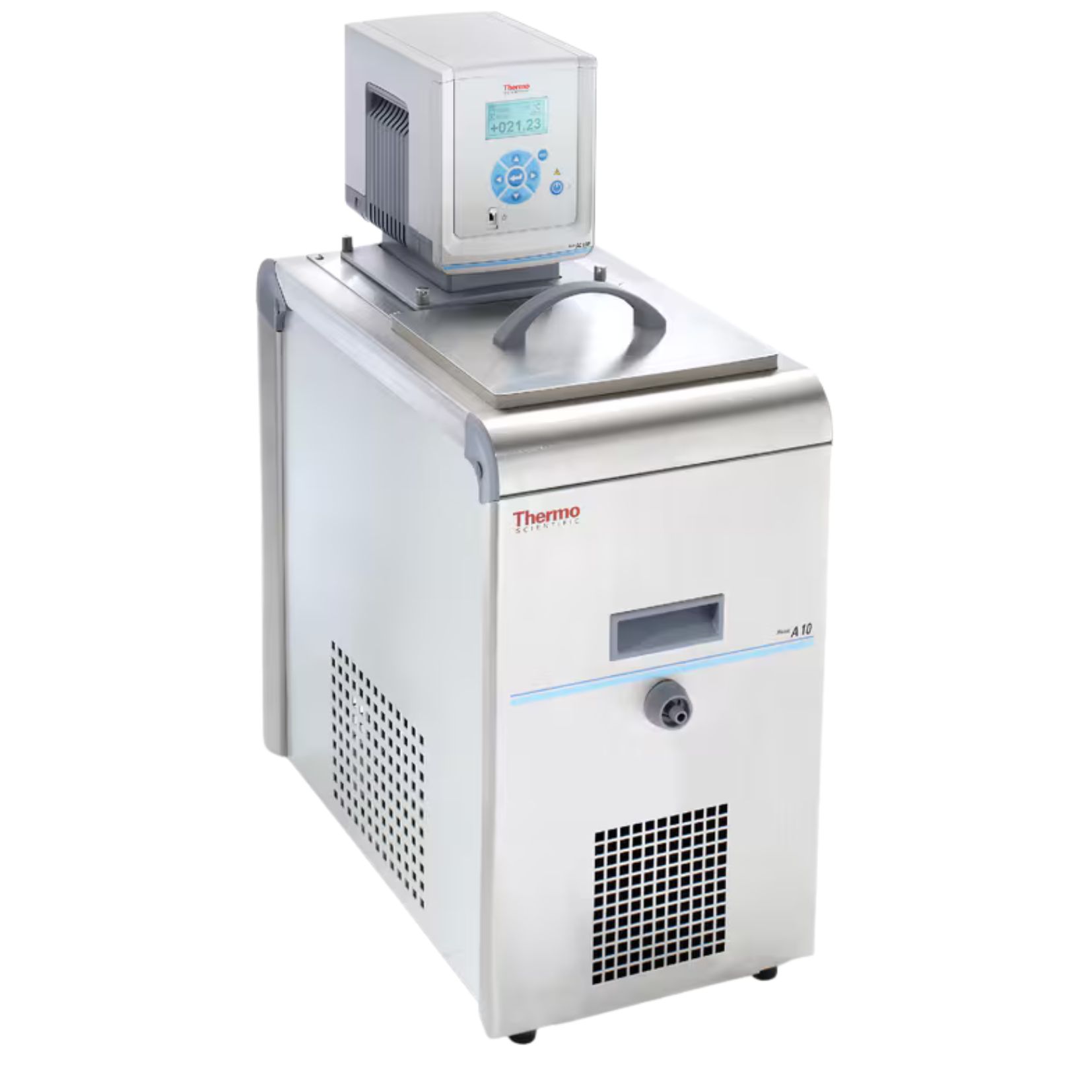

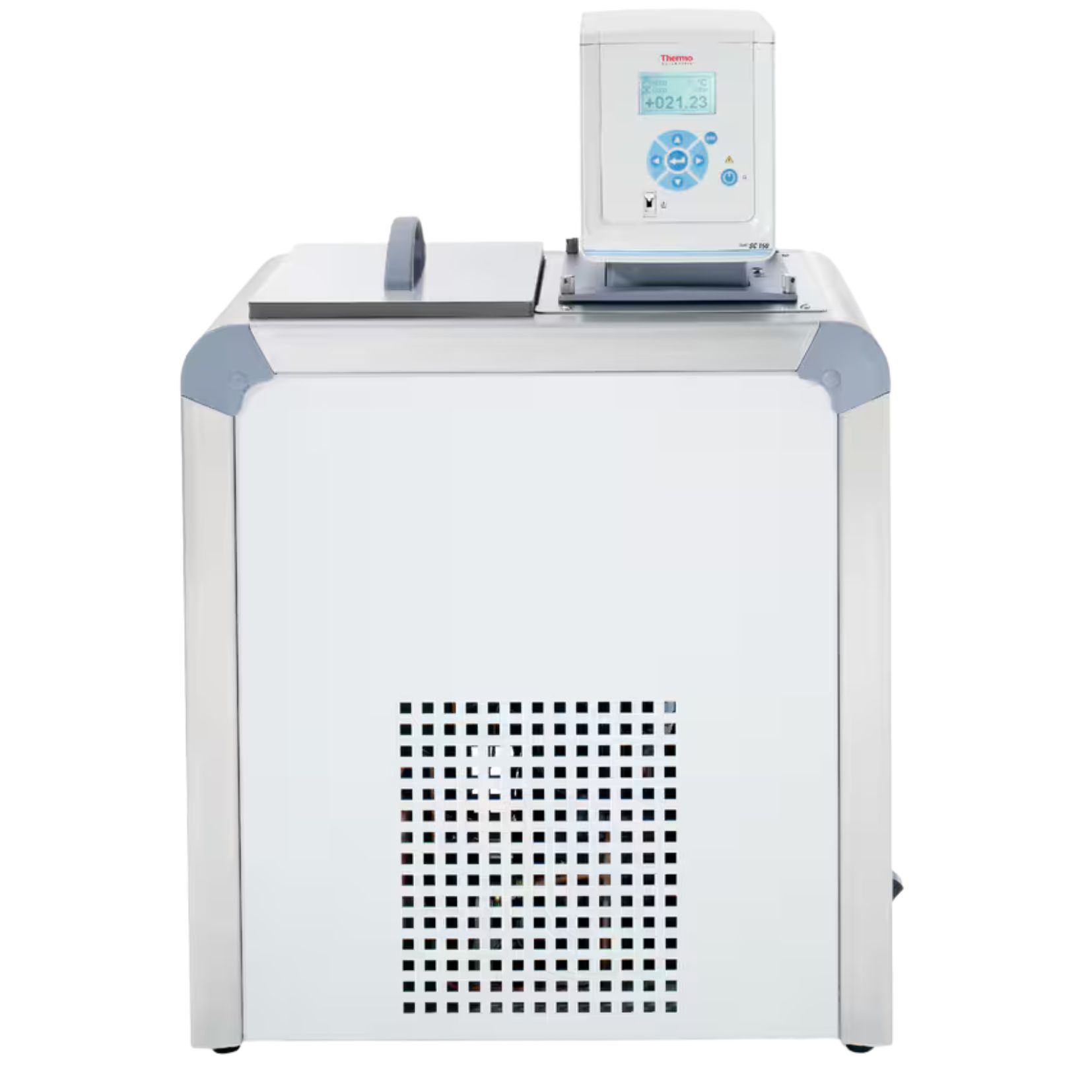

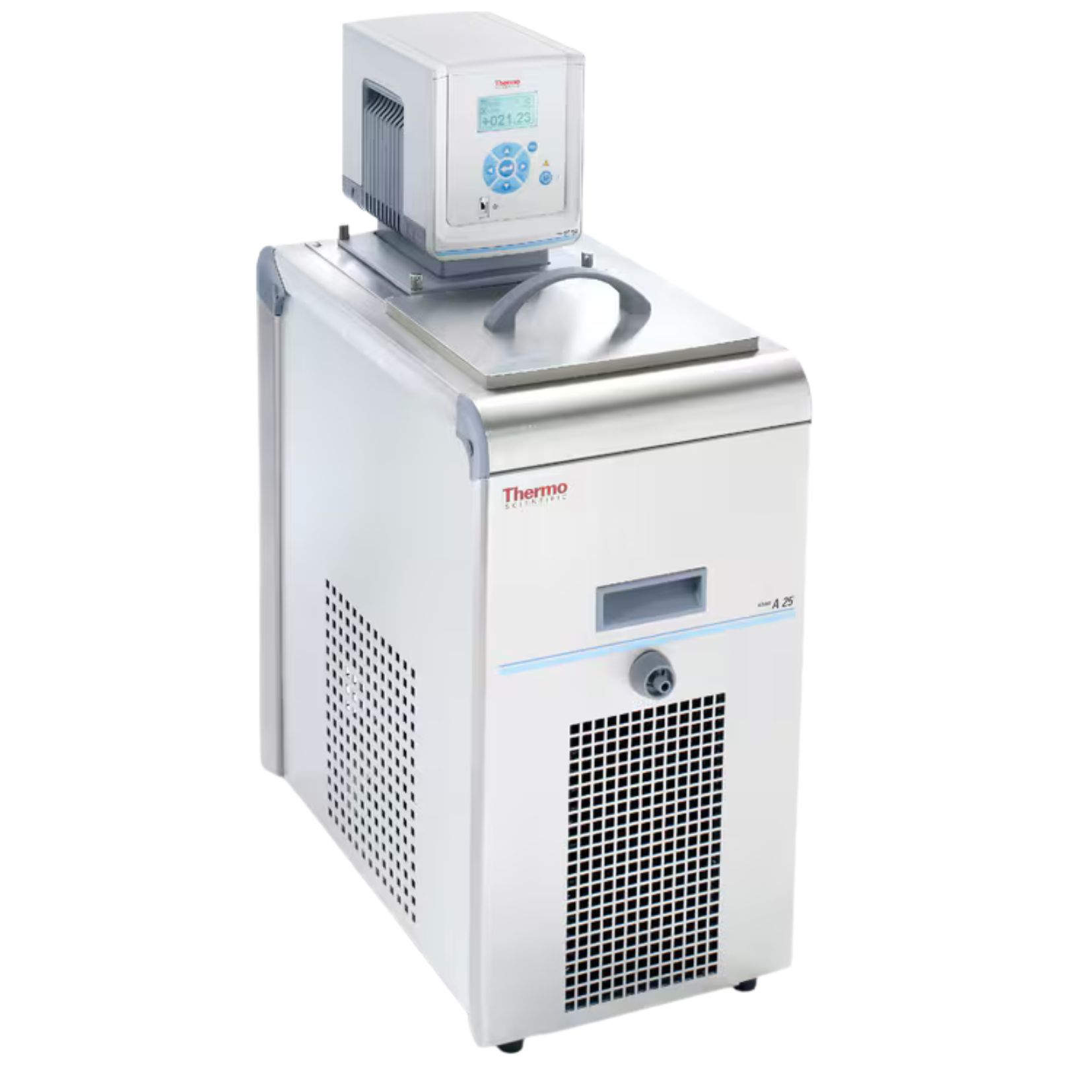

The Thermo Scientific Arctic Series refrigerated bath circulators offer precise temperature control for laboratory applications. Systems are available with various bath sizes and circulator controllers. Suitable for internal and external circulation. Ideal for analytical and research use.
The Thermo Scientific Arctic Series refrigerated bath circulators are designed for reliable temperature control at low and medium temperatures. These systems combine a powerful cooling unit with an integrated circulator and are suitable for both internal and external circulation. They are used in analytical, research, and industrial laboratories.
The Arctic Series is available with multiple bath types and volumes. The A10 and A10B are compact models for smaller volumes. The A25 and A25B offer a larger working area for standard applications. The A45HC is designed for applications requiring higher cooling capacity and deeper baths. All versions feature a stainless steel working chamber.
The selected SKUs combine Arctic baths with SC, AC, and PC circulator controllers. Depending on the configuration, a temperature range of up to -45 °C and up to +200 °C is possible. The systems offer digital control, high temperature stability, and powerful pumps for external applications.
Key Features
| Feature | Arctic Series |
|---|---|
| Type | Refrigerated bath circulator |
| Application | Internal and external circulation |
| Working chamber | Stainless steel |
| Temperature control | Digital |
| External circulation | Yes |
| Certification | CE, RoHS, WEEE |
| SKU | Series | Bath type | Controller | Temperature range |
|---|---|---|---|---|
| 1525101 | Arctic | A10 | SC100 | -10 °C to +100 °C |
| 1535101 | Arctic | A10 | SC150 | -10 °C to +100 °C |
| 15555101 | Arctic | A10 | AC150 | -10 °C to +100 °C |
| 1565101 | Arctic | A10 | AC200 | -10 °C to +100 °C |
| 1525251 | Arctic | A25 | SC100 | -25 °C to +100 °C |
| 1535251 | Arctic | A25 | SC150 | -25 °C to +150 °C |
| 1545251 | Arctic | A25 | SC150L | -25 °C to +150 °C |
| 15555251 | Arctic | A25 | AC150 | -25 °C to +150 °C |
| 1565251 | Arctic | A25 | AC200 | -25 °C to +200 °C |
| 1575251 | Arctic | A25 | PC200 | -25 °C to +200 °C |
| 1545401HC | Arctic | A45HC | SC150L | -28 °C to +150 °C |
| 1565401HC | Arctic | A45HC | AC200 | -45 °C to +200 °C |
| 1575401HC | Arctic | A45HC | PC200 | -45 °C to +200 °C |
| 1524101 | Arctic | A10B | SC100 | -10 °C to +100 °C |
| 1534101 | Arctic | A10B | SC150 | -10 °C to +100 °C |
| 1554101 | Arctic | A10B | AC150 | -10 °C to +100 °C |
| 1564101 | Arctic | A10B | AC200 | -10 °C to +100 °C |
| 1524151 | Arctic | A25B | SC100 | -25 °C to +100 °C |
| 1534251 | Arctic | A25B | SC150 | -25 °C to +150 °C |
| 1554251 | Arctic | A25B | AC150 | -25 °C to +150 °C |
| 1564251 | Arctic | A25B | AC200 | -25 °C to +200 °C |
Depending on the model, the Arctic Series cools to -10 °C, -25 °C or -45 °C (A45HC). The maximum bath temperature reaches 200 °C.
The Arctic baths come in several volumes, from 6 and 12 litres to 21 litres (A25B) and 30 litres (A10B).
Yes. All systems include standard connections for external circulation, so you can also control connected instruments.
Cooling capacity at 20 °C is 240 W (A10), 500 W (A25) or 900 W (A45HC), depending on the chosen model.
The work area is built from corrosion-resistant stainless steel, suitable for demanding laboratory use.
You combine the Arctic bath with an SC, AC or PC controller, depending on the required temperature and features.
