Matte-black TRACE monitor mount with panel clamp, 28 cm height adjustment and a 2.9–9.8 kg monitor weight range.

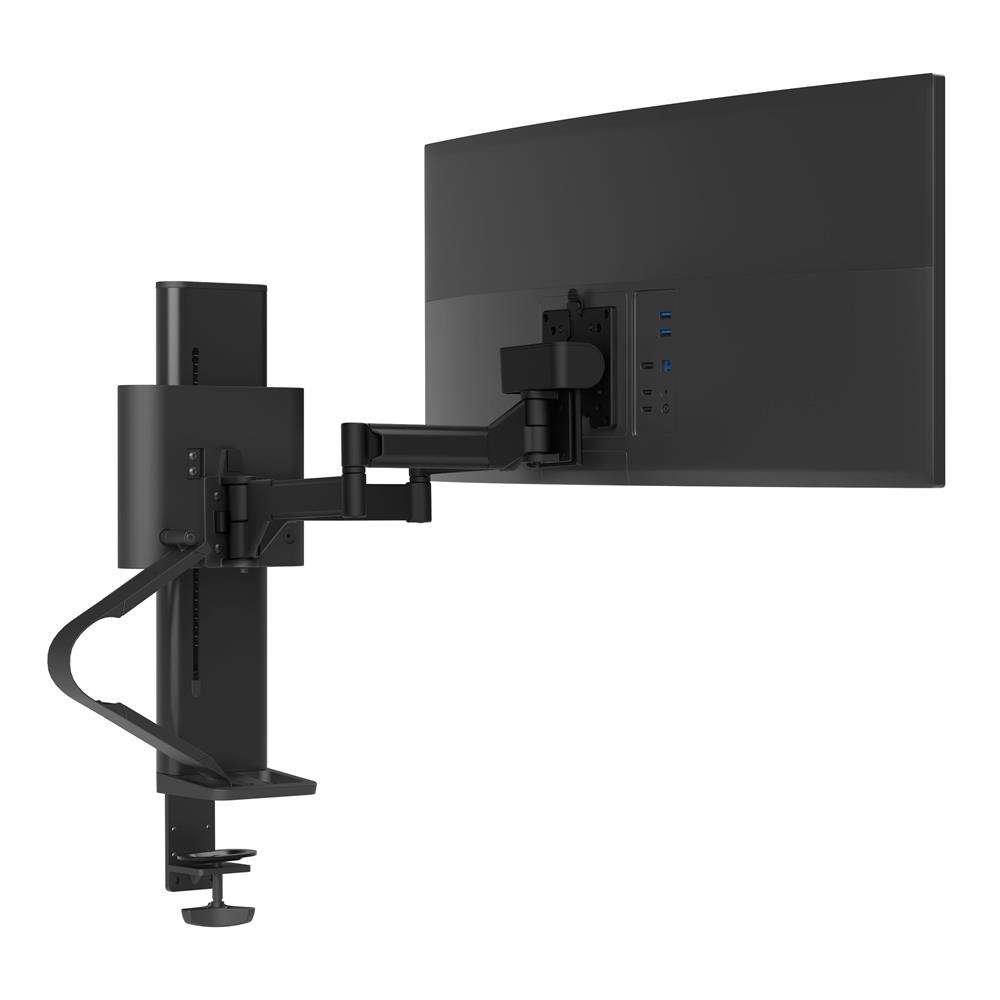

The Ergotron TRACE 45-630-224 supports one monitor above the desk. Its counterbalanced mechanism lets the user adjust screen height and reach when changing tasks or sharing a screen with a colleague. This is the single-monitor TRACE configuration in matte black.
Check the monitor weight without its stand and the VESA mounting pattern before choosing a mount. TRACE combines 28 cm of height adjustment with integrated cable management. A panel clamp and installation hardware are included; other mounting arrangements require the appropriate optional kit.
A separate TRACE conversion kit can change the mounting configuration later. The kit, the resulting monitor load limits and desk compatibility must be checked together. Poly Temp can help select the mount and matching accessories for your workstation.
| Specification | TRACE 45-630-224 |
|---|---|
| Configuration | Single monitor; matte black |
| Typical screen size | 21.5–38 inch; weight and fit are decisive |
| Monitor weight | 2.9–9.8 kg |

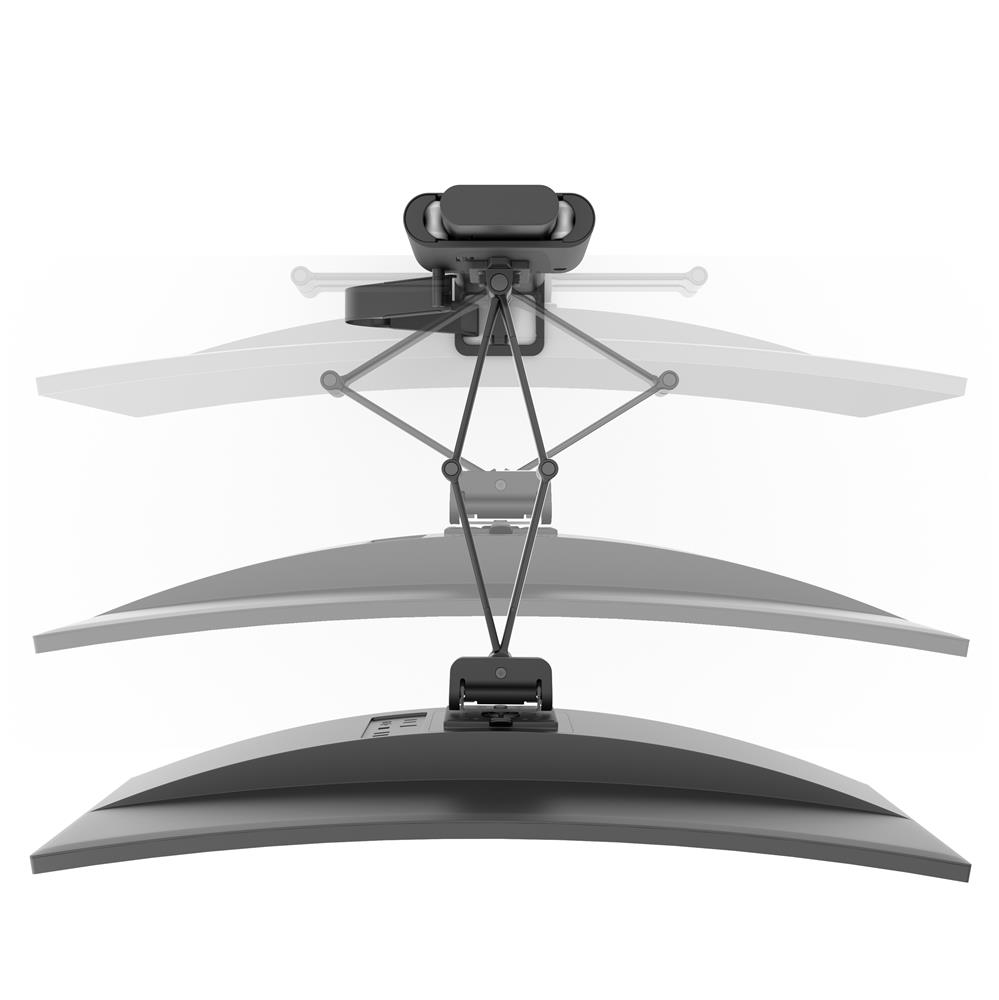

| Height adjustment | 28 cm |

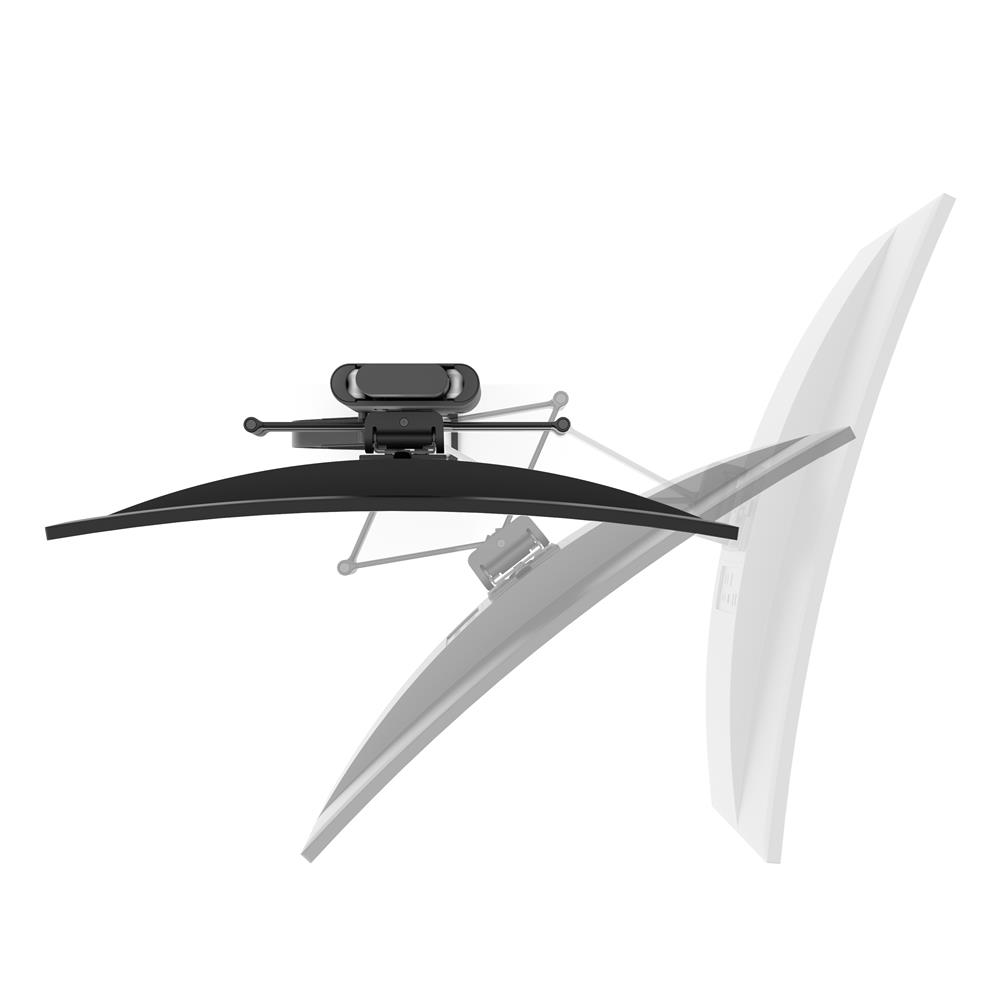

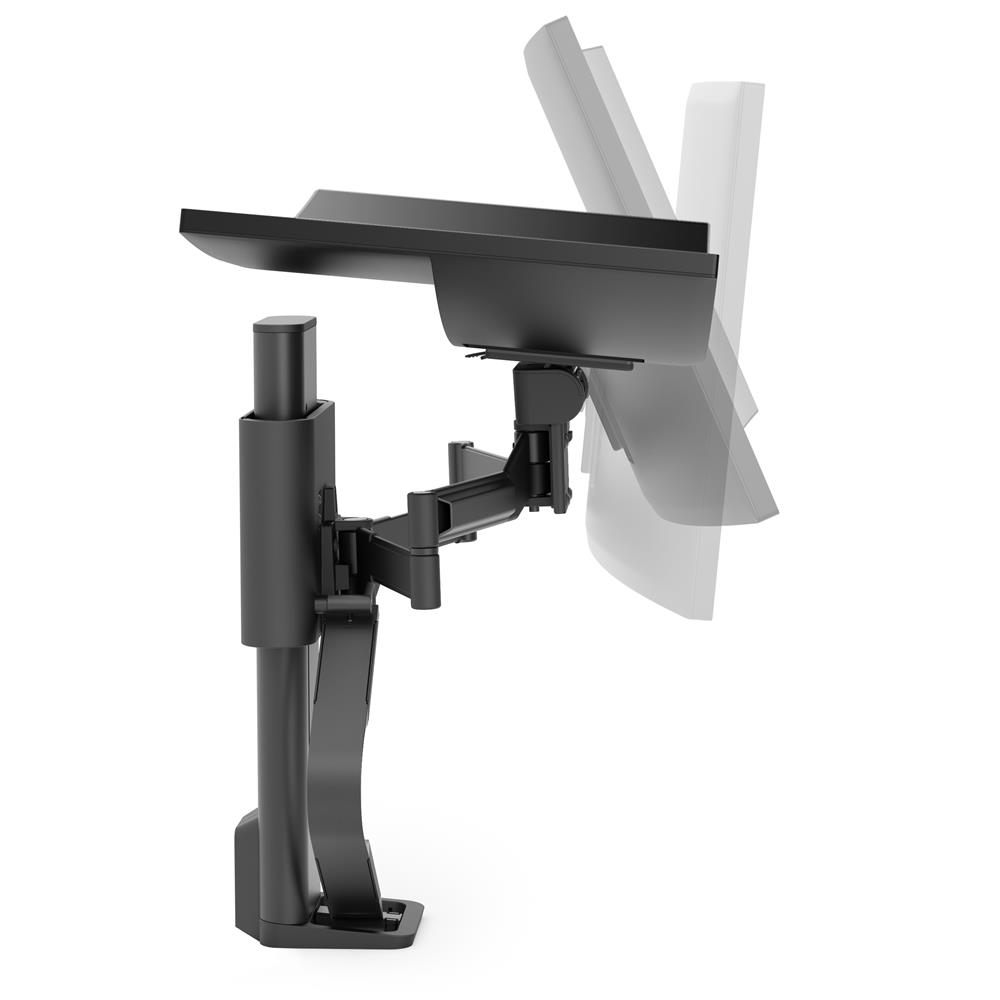

| Tilt | 75° up / 5° down |
| Pan / rotation | 240° / 360° |

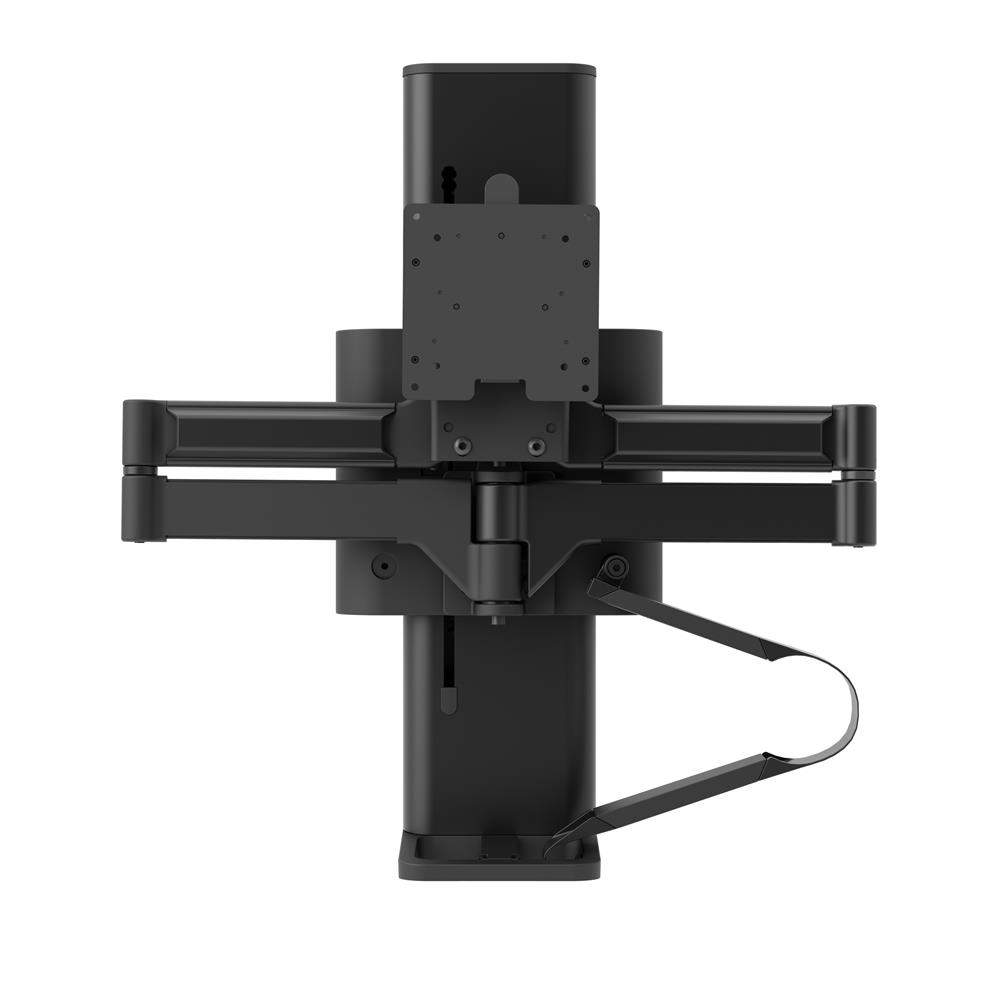

| VESA | 75 × 75 / 100 × 100 mm |
| Extension | Up to 38.1 cm |
| Mounting | Panel clamp included; optional kits for other mounting methods |
| Product weight | 7 kg; shipping weight 8.3 kg |
| Warranty | 15 years, subject to manufacturer terms |
No. This part number identifies the single-monitor TRACE mount in matte black. LX and TRACE are different product families.
Check a monitor weight of 2.9–9.8 kg, a 75 × 75 or 100 × 100 mm VESA pattern, and the available clearance. The typical screen-size range is a guide, not a substitute for these checks.

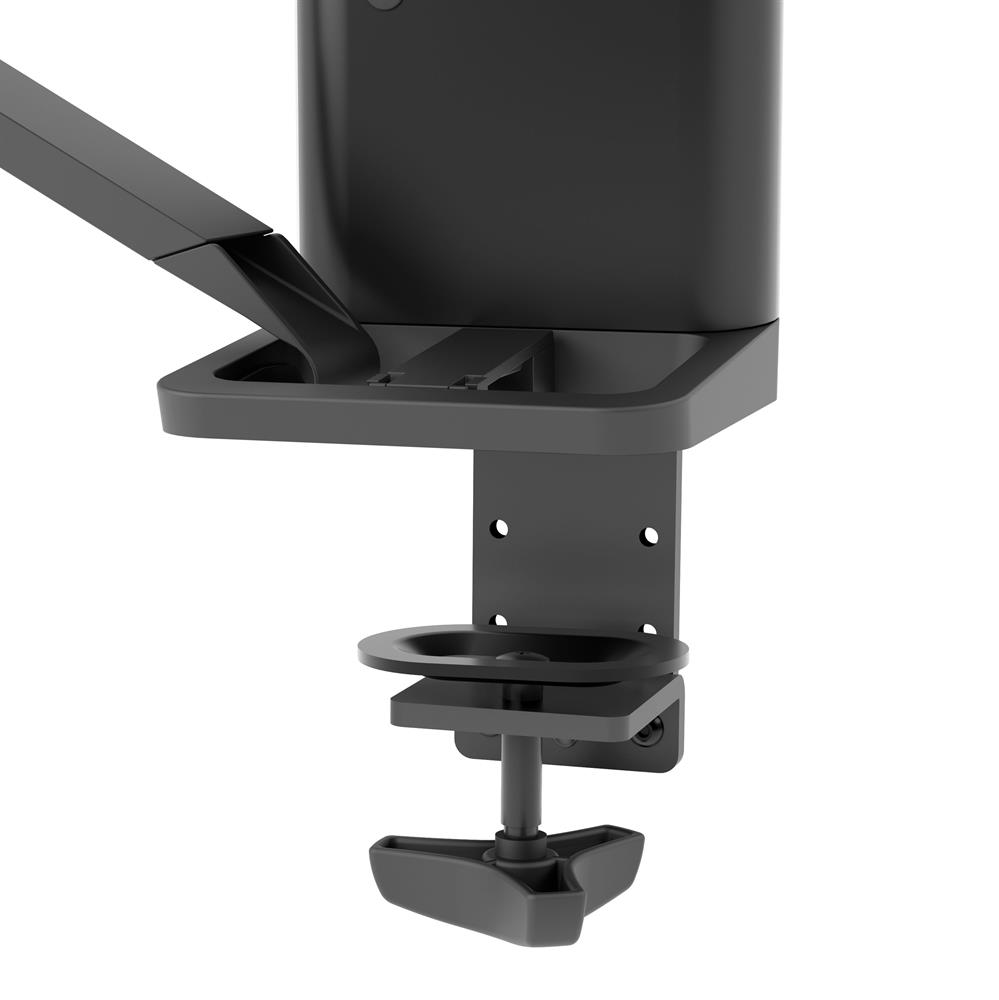

The panel clamp is included. Check the desk construction and clamp fit before installation. A grommet or other clamp kit is a separate option.
A compatible TRACE conversion kit is available separately. The converted configuration has its own load limits, which must be checked for both monitors.
