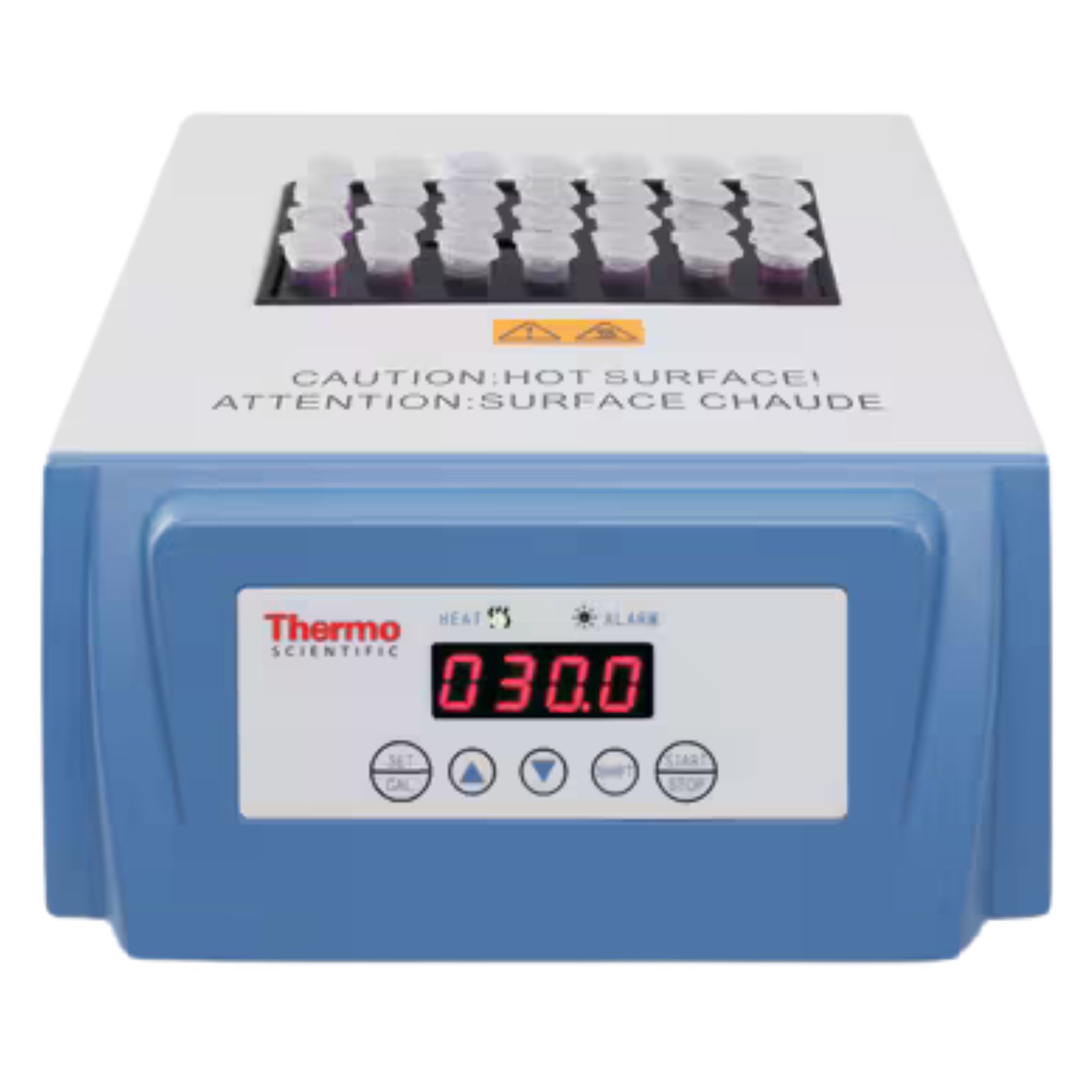

The Thermo Scientific Digital Dry Bath / Block Heater provides reliable and reproducible temperature control for laboratory applications. Available with 1, 2, or 4 block positions. Suitable for sample incubation, enzyme digestion, and PCR preparation. PID temperature control with timer.
The Thermo Scientific Digital Dry Bath / Block Heater is developed for consistent and reproducible heating of samples. The system is used for sample incubation, enzyme digestion, restriction digestion, PCR preparation, and other heating protocols. The dry bath format eliminates the risk of contamination associated with water baths.

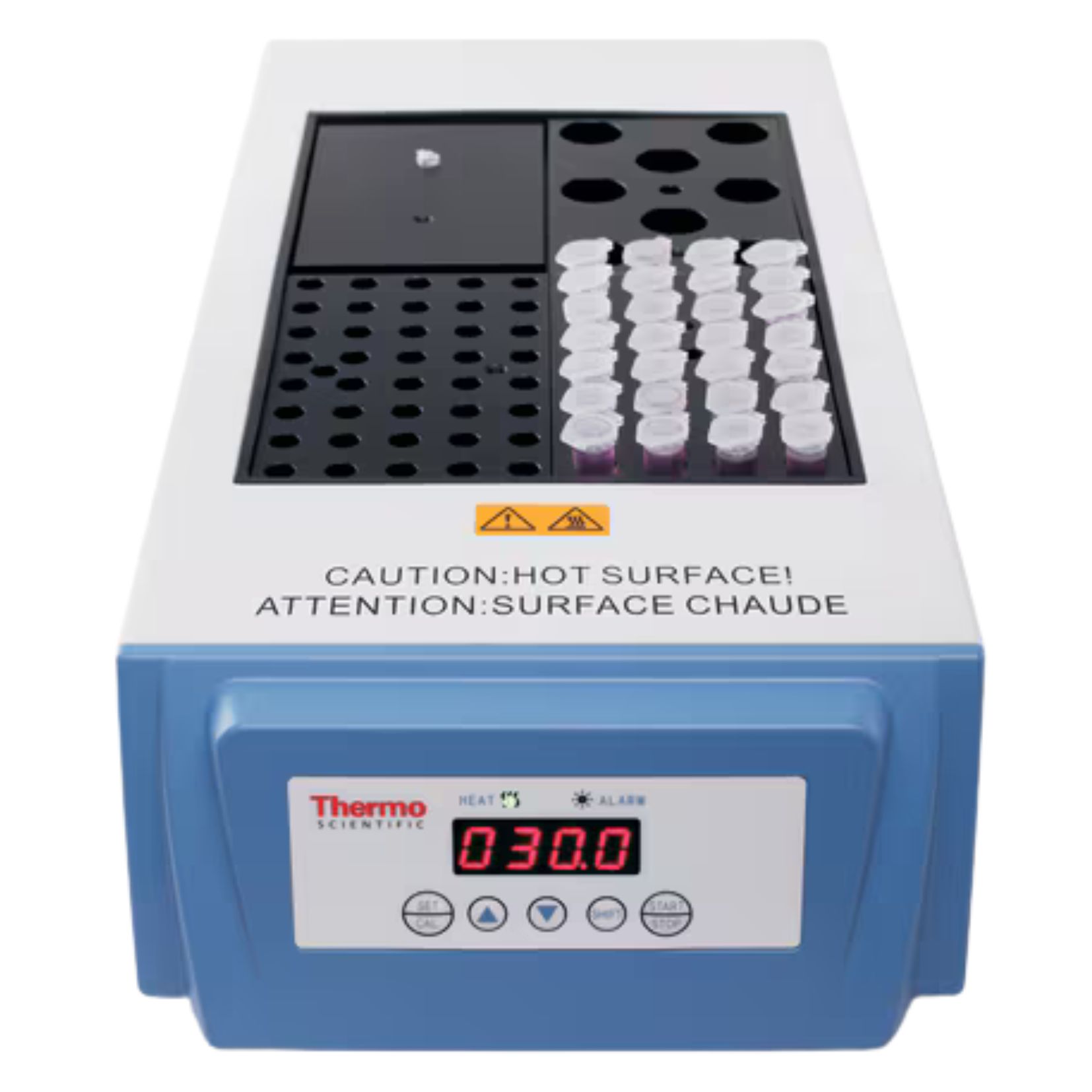

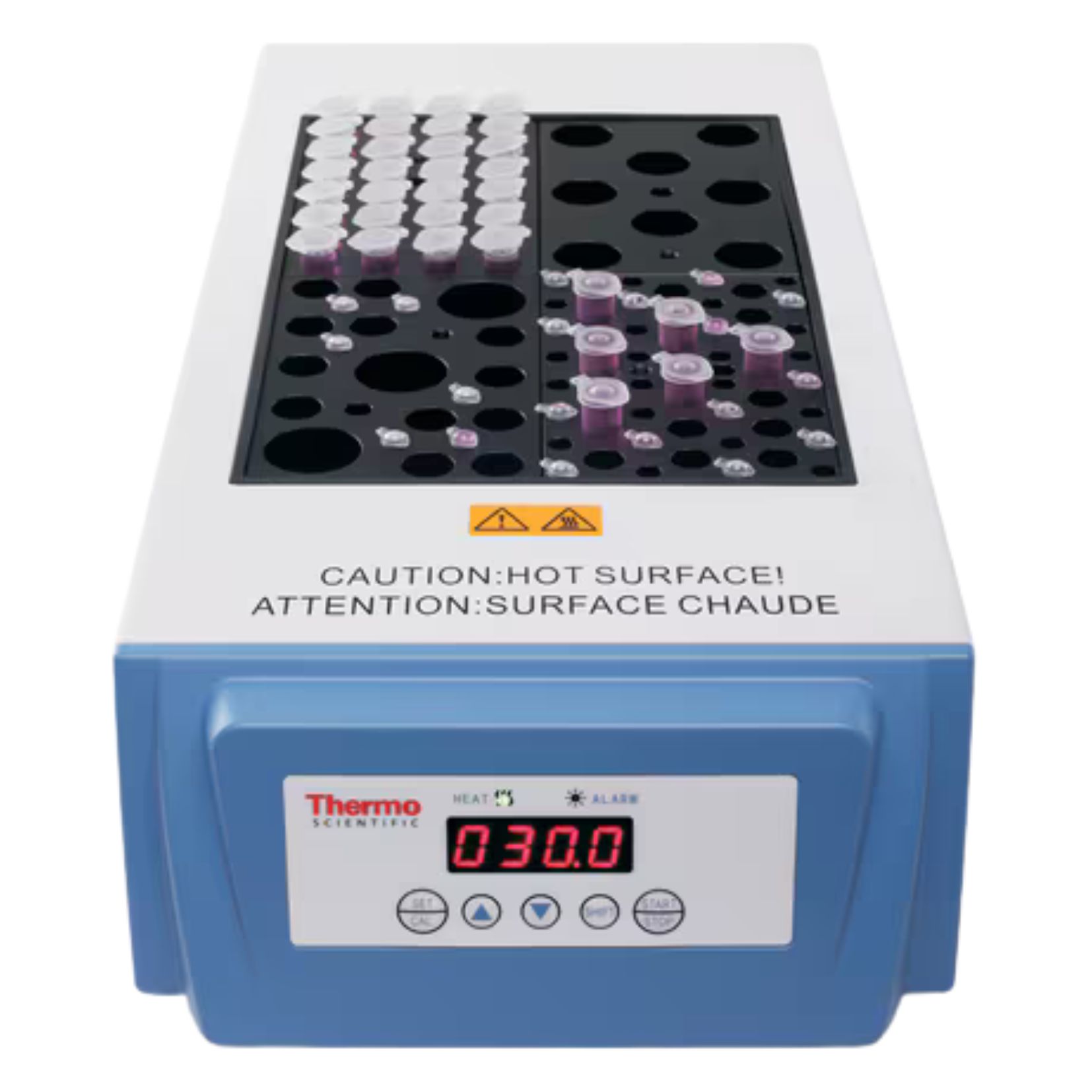

The modular design accommodates 1, 2, or 4 interchangeable aluminium blocks simultaneously. A wide range of blocks is available for tubes from 0.2 mL to 50 mL, microplates, and other formats. Blocks are changed quickly without tools.
Precise PID temperature control maintains set temperatures with high accuracy and stability. An integrated timer supports timed incubations. Safety features include over-temperature alarm and automatic shutdown.
Key Features
Please note: the Dry Bath / Block Heater always requires a separate heating block. View the interchangeable blocks for the Dry Bath / Block Heater.
| Feature | Digital Dry Bath / Block Heater |
|---|---|
| Type | Dry bath / block heater |
| Temperature range | Ambient +5 °C to 130 °C |
| Temperature accuracy at 37 °C | ≤ ±0.5 °C |
| Temperature uniformity at 37 °C | ≤ ±1 °C |
| Control technique | PID digital |
| Timer | 0–99:59 min or continuous |
| Warm-up time | ≤ 20 min (1–2 blocks), ≤ 25 min (4 blocks) |
| Relative humidity | ≤ 80% |
| Housing | Powder-coated steel |
| Certification | CE, cULus, RoHS |
| Warranty | 2 years |
| SKU | Block capacity | Voltage | Dimensions (L x W x H) | Weight | Scope of delivery |
|---|---|---|---|---|---|
| 88870004 | 1 block | 200–240 V, 50/60 Hz | 288 x 200 x 100 mm | 2.9 kg | Dry bath, EU/UK/CN plugs, block lifter |
| 88870005 | 2 blocks | 200–240 V, 50/60 Hz | 318 x 200 x 100 mm | 3.3 kg | Dry bath, EU/UK/CN plugs, block lifter |
| 88870006 | 4 blocks | 200–240 V, 50/60 Hz | 450 x 200 x 100 mm | 4.7 kg | Dry bath, EU/UK/CN plugs, block lifter |
From ambient temperature +5 °C to 130 °C.
Control accuracy is ≤±0.5 °C and uniformity ≤±1 °C at 37 °C, via PID control.
Yes, a modular system with 1, 2 or 4 interchangeable blocks.
A wide range of formats, via interchangeable aluminium blocks.
Yes, adjustable from 0 to 99:59 minutes or continuous.
With digital control and a display of time and temperature.
