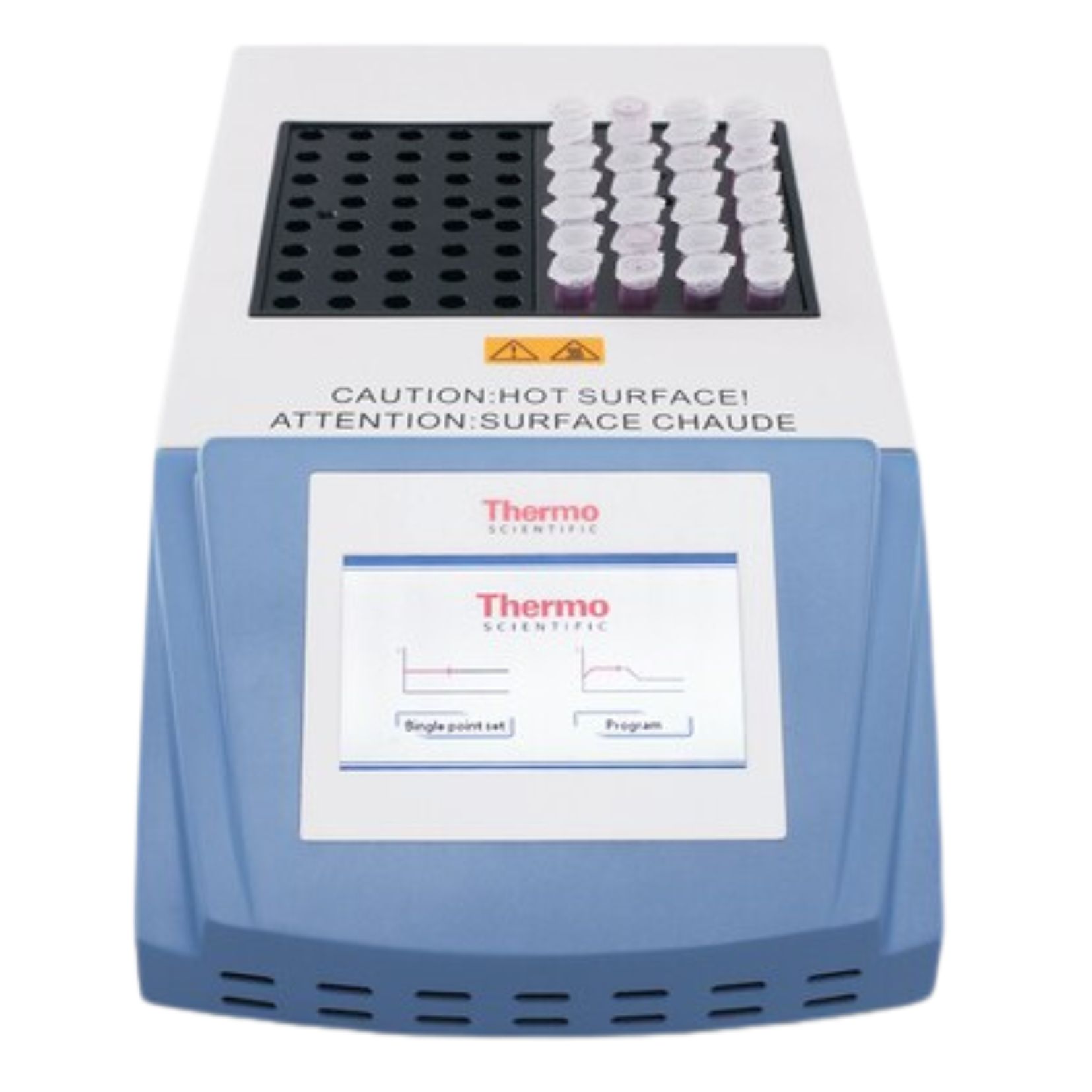

The Thermo Scientific Touch Screen Dry Bath / Block Heater offers precise temperature control with intuitive touchscreen operation. Available with 1, 2, or 4 block positions. Programmable steps for complex heating protocols. PID temperature control for high uniformity.
The Thermo Scientific Touch Screen Dry Bath / Block Heater is developed for laboratory applications where precise temperature control and uniformity are essential. The touchscreen interface enables intuitive programming of multi-step heating protocols. This makes the unit particularly suitable for complex workflows such as gradient PCR preparation and sequential enzyme incubations.
Multiple temperature steps with individual hold times can be programmed directly on the touchscreen. PID temperature control maintains set temperatures with high accuracy. Temperature uniformity across all block positions ensures consistent results for every sample.
The modular system accepts 1, 2, or 4 interchangeable aluminium blocks for tubes from 0.2 mL to 50 mL, microplates, and other formats. Quick tool-free block changes support efficient workflows. The compact footprint minimises bench space requirements.
Key Features
Please note: the Dry Bath / Block Heater always requires a separate heating block. View the interchangeable blocks for the Dry Bath / Block Heater.
| Feature | Touch Screen Dry Bath / Block Heater |
|---|---|
| Type | Dry bath / block heater |
| Temperature range | Ambient +5 °C to 130 °C |
| Temperature control | PID digital |
| Temperature accuracy at 37 °C | ±0.5 °C |
| Temperature uniformity at 37 °C | ±1 °C |
| Timer | 0–99:59 min or continuous |
| Relative humidity | ≤80% |
| Housing material | Powder-coated steel |
| Certification | CE, cULus, RoHS |
| Warranty | 2 years |
| SKU | Block capacity | Dimensions (L x W x H) | Weight | Voltage |
|---|---|---|---|---|
| 88870010 | 1 block | 373 x 200 x 100 mm | 3.4 kg | 200–240 V, 50/60 Hz |
| 88870011 | 2 blocks | 403 x 200 x 100 mm | 3.7 kg | 200–240 V, 50/60 Hz |
| 88870012 | 4 blocks | 535 x 200 x 100 mm | 5.1 kg | 200–240 V, 50/60 Hz |
Via a user-friendly touchscreen.
Yes, the touchscreen supports programmable steps with different temperatures and times.
From ambient temperature +5 °C to 130 °C.
Yes, the external sensor then automatically takes over temperature control.
1, 2 or 4 interchangeable modular blocks.
For a wide range of tube formats, depending on the chosen block.
