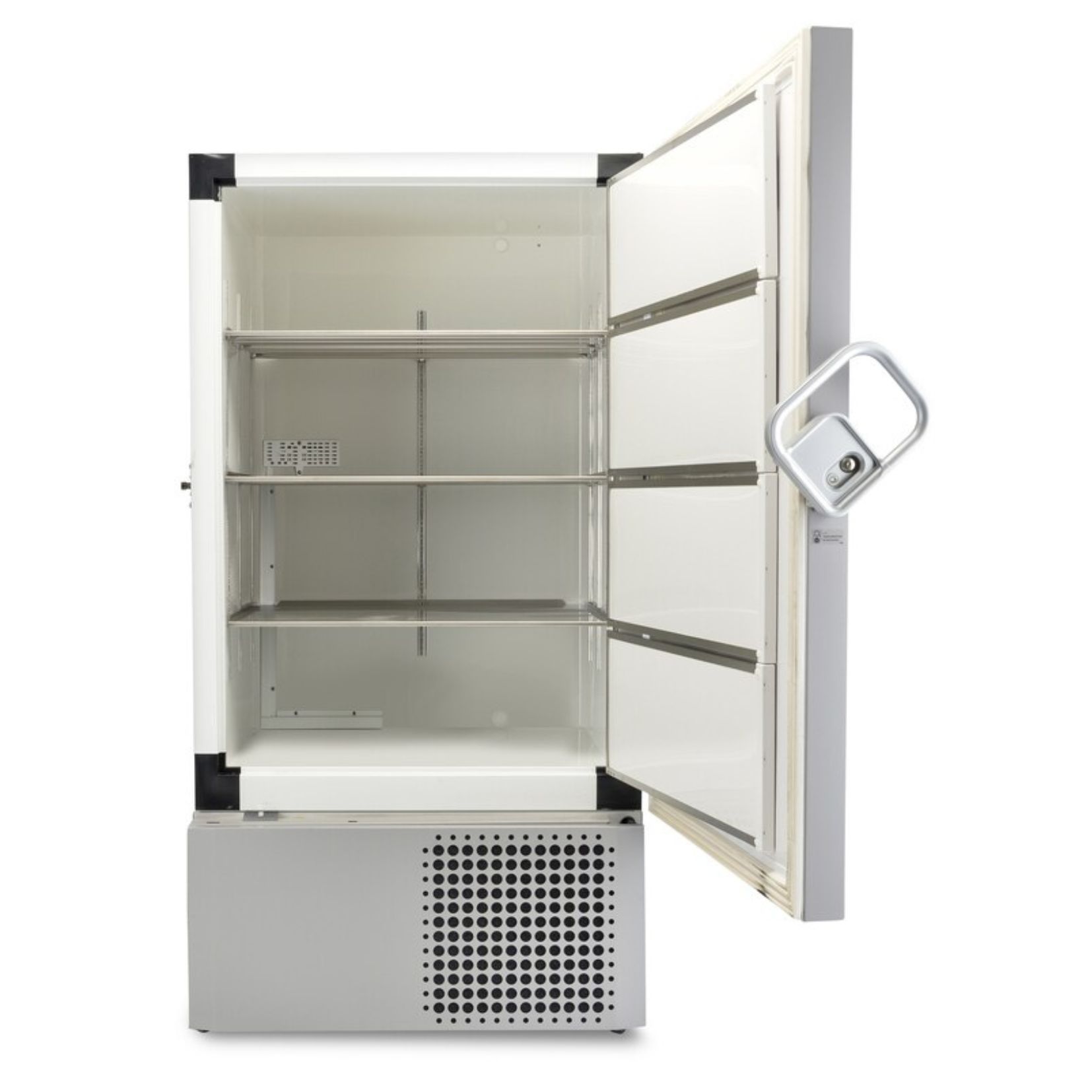

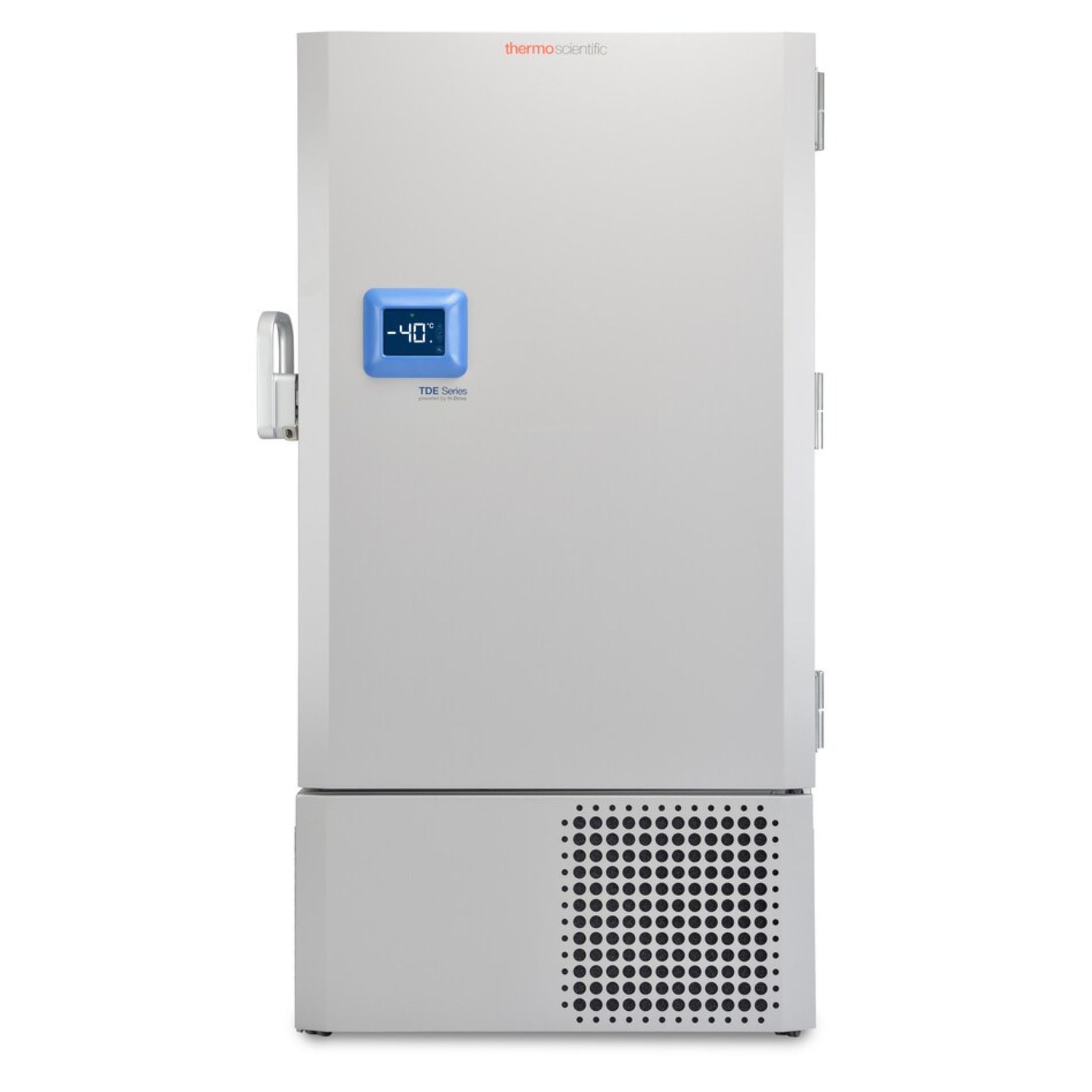

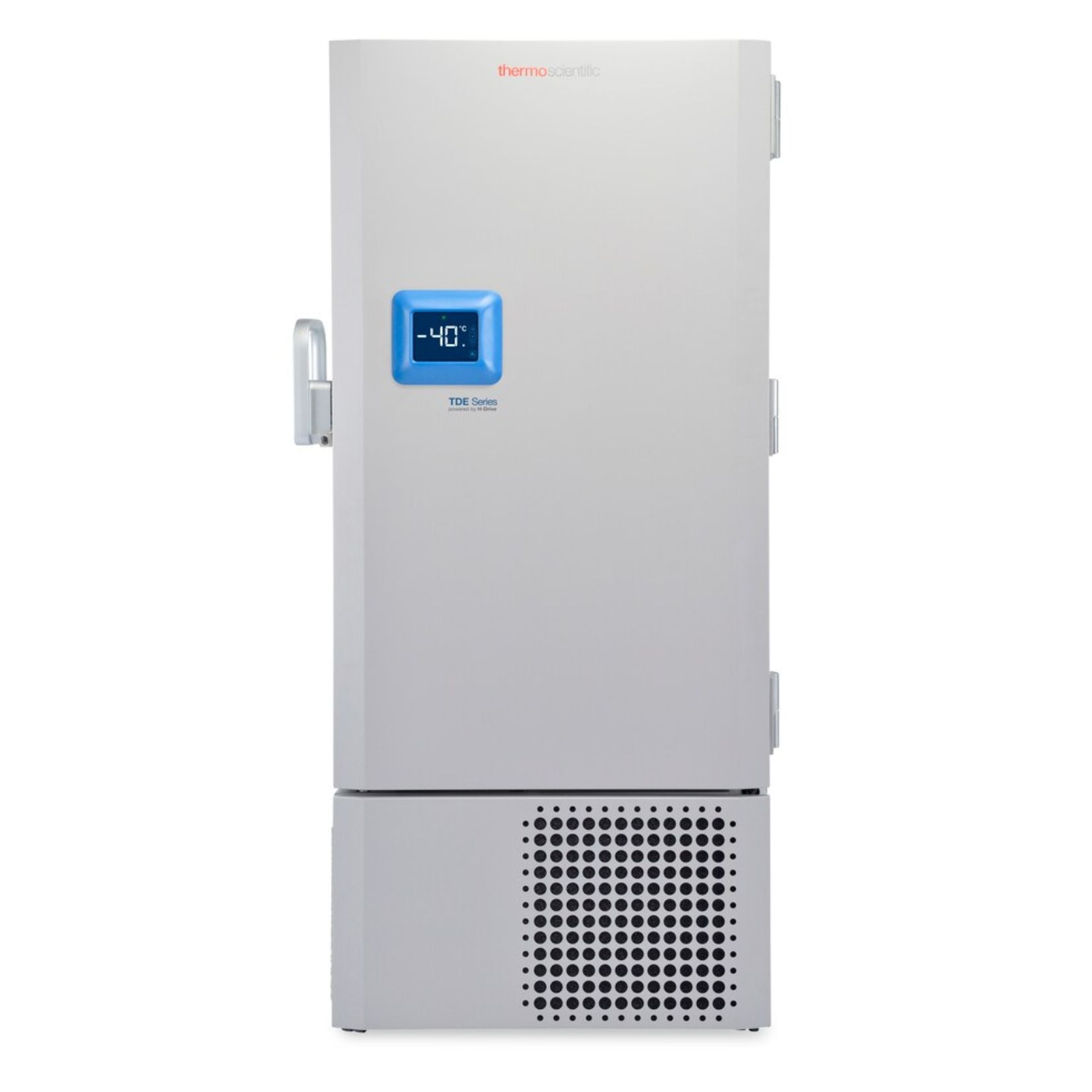

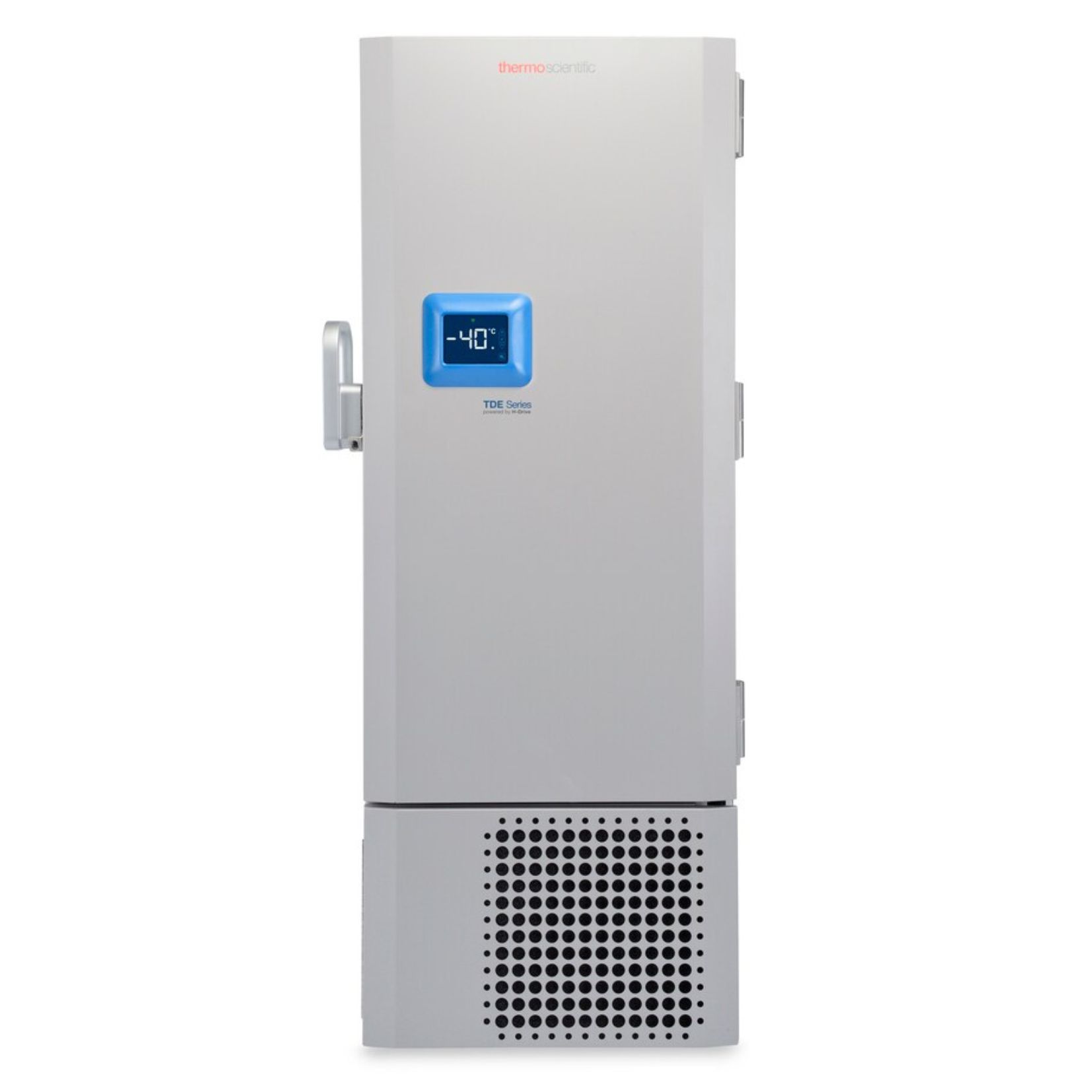

The TDE Series -40 °C freezers offer stable and reliable sample storage. They combine H-Drive technology with low noise levels. Suitable for daily laboratory use. Developed for long-term sample protection.
The Thermo Scientific TDE Series -40 °C ULT freezers are designed for safe and stable storage of samples at temperatures between -10 °C and -40 °C. These freezers provide a solid foundation for applications where ultra-low temperatures are required but -80 °C is not necessary. Typical applications include reagents, enzymes, plasma samples and pharmaceutical preparations.
The TDE Series uses H-Drive compressor technology that dynamically adjusts cooling capacity to the load. This results in low peak variations around the setpoint and controlled temperature recovery after door opening. The temperature distribution remains stable throughout the cabinet, even during intensive daily use.
All models are equipped with the H-Drive Information Center with a clear touchscreen interface. Safety features such as setpoint locking, alarms and a lockable door support sample safety. Thanks to natural hydrocarbon refrigerants and low heat dissipation, the freezers comply with SNAP and EU F-gas regulations. The noise level remains suitable for placement directly in the laboratory.
Key features:
| Feature | Specification |
|---|---|
| Type | Upright -40 °C freezer |
| Temperature range | -10 °C to -40 °C |
| Cooling technology | H-Drive |
| Refrigerant | Natural hydrocarbons |
| Control | H-Drive Information Center touchscreen |
| Alarm functions | Temperature, door, power failure |
| Noise level | approx. 48–51 dB(A) |
| Power supply | 230 V / 50 Hz |
| Certification | CE |
| Warranty | 5 years parts and labour |
| SKU | Model | Capacity (L) | Capacity (cu ft) | 2″ box capacity | Outer dimensions (WxDxH, cm) | Noise level (dB(A)) |
|---|---|---|---|---|---|---|
| TDE40040FV | TDE 400 | 549 | 19.4 | 400 | 71.9 x 97.7 x 198.1 | 49 |
| TDE50040FV | TDE 500 | 682 | 24.1 | 500 | 86.4 x 97.7 x 198.1 | 48 |
| TDE60040FV | TDE 600 | 816 | 28.8 | 600 | 100.6 x 97.7 x 198.1 | 49 |
Reliable storage down to -40 °C.
Within 18 to 25 minutes.
A drive that keeps the temperature peak variation low.
Yes, with an energy-efficient and environmentally friendly design.
Yes, it is quiet enough for placement in the laboratory.
An upright ULT freezer.
