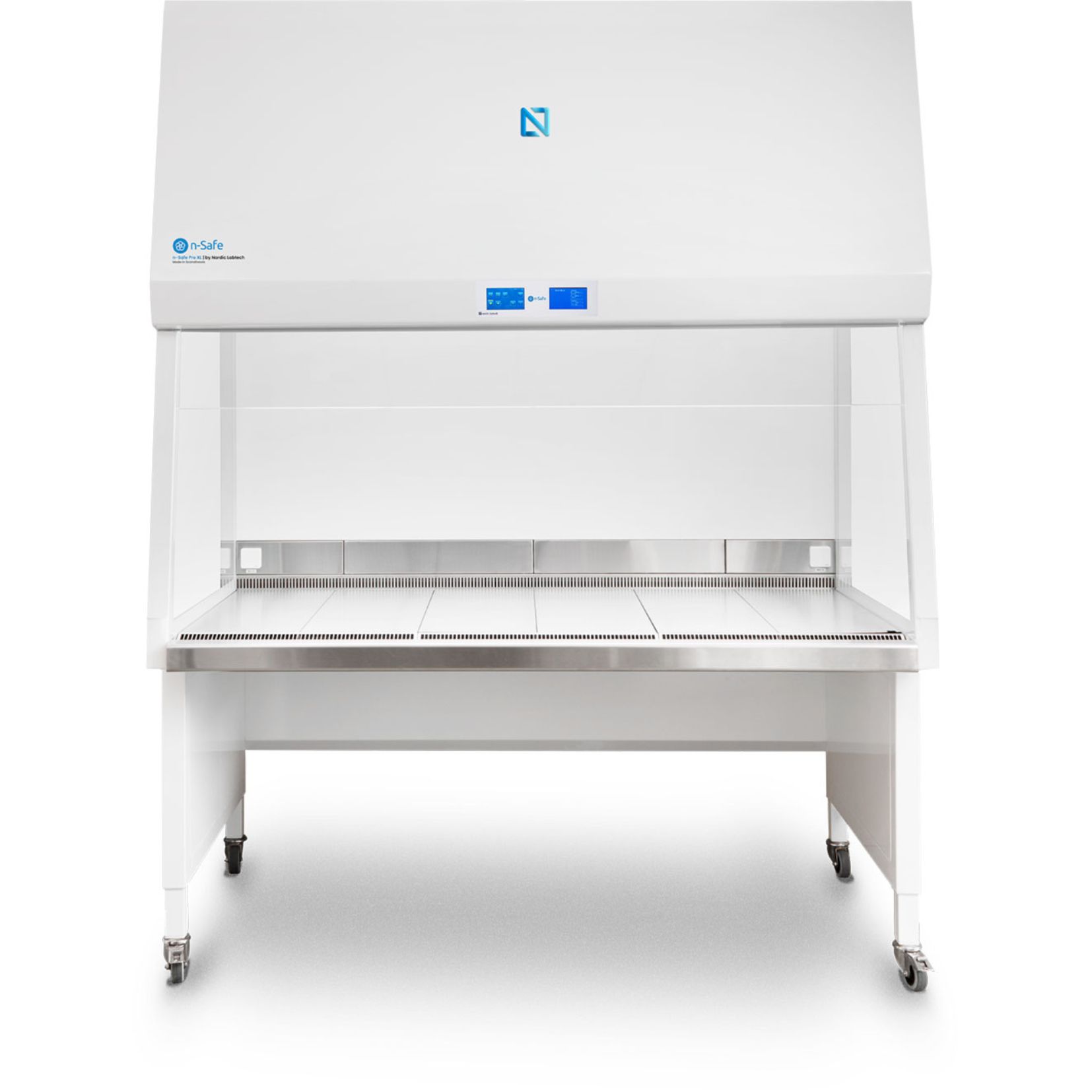

The n-Safe XL is an extra-large safety workstation for applications with bulky equipment. The series is available as Class II, Cyto and Clean Bench. Thanks to the large internal dimensions, the workstation is suitable for demanding laboratories. Designed for ergonomics, flexibility and customisation.
The n-Safe XL is developed for applications where the workspace of a standard safety workstation is insufficient. This series is distinguished by an internal working height of 1000 mm and an internal depth of 900 mm. This makes the n-Safe XL suitable for large equipment such as pipetting robots and bulky setups. The full front can be completely opened, simplifying the placement and removal of equipment.
The n-Safe XL is available in three variants. The standard n-Safe XL Class II complies with EN 12469 and provides protection of product, user and environment. The n-Safe XL Class II Cyto version is configured as a three-filter safety workstation and complies with EN 12469 and DIN 12980 for work with cytotoxic substances. Additionally, the n-Safe XL Clean Bench is available as an open laminar flow workstation for product protection without operator protection.
Due to the large dimensions of the n-Safe XL, installation is an important consideration. The design enables final assembly on-site at narrow doorways. The workstation is compatible with adjustable and electrically height-adjustable stands. LED lighting with adjustable intensity and HEPA H14 filtration are standard, tailored for long-term and comfortable use.
| Feature | Specification |
|---|---|
| Type | Safety workstation or clean bench |
| Internal working height | 1000 mm |
| Internal depth | 855 to 970 mm |
| Vertical air velocity | 0.28 m/s, adjustable |
| Inflow velocity Class II | 0.45 m/s, adjustable |
| Air velocity deviation | < 8 percent |
| Filter type | HEPA H14 according to EN 1822 |
| Filtration efficiency | 99.999 percent at 0.3 µm |
| Lighting | LED, 0 to 2000 lux, dimmable |
| Front opening | 200 mm, adjustable |
| Stand | Adjustable or electrically height-adjustable |
| Standard | EN 12469, optionally DIN 12980 |
| SKU | Variant | Standard | Internal width |
|---|---|---|---|
| 311 3000 1200 | n-Safe XL Class II | EN 12469 | 1200 mm |
| 311 3000 1500 | n-Safe XL Class II | EN 12469 | 1500 mm |
| 311 3000 1800 | n-Safe XL Class II | EN 12469 | 1800 mm |
| 311 3000 2100 | n-Safe XL Class II | EN 12469 | 2100 mm |
| 311 3000 2400 | n-Safe XL Class II | EN 12469 | 2400 mm |
| 311 3100 1200 | n-Safe XL Class II Cyto | EN 12469 & DIN 12980 | 1200 mm |
| 311 3100 1500 | n-Safe XL Class II Cyto | EN 12469 & DIN 12980 | 1500 mm |
| 311 3100 1800 | n-Safe XL Class II Cyto | EN 12469 & DIN 12980 | 1800 mm |
| 311 3200 1200 | n-Safe XL Clean Bench | Product protection | 1200 mm |
| 311 3200 1500 | n-Safe XL Clean Bench | Product protection | 1500 mm |
| 311 3200 1800 | n-Safe XL Clean Bench | Product protection | 1800 mm |
| 311 3200 2100 | n-Safe XL Clean Bench | Product protection | 2100 mm |
| 311 3200 2400 | n-Safe XL Clean Bench | Product protection | 2400 mm |
An extra high and deep work area for large equipment.
As Class II, Cyto and Cleanbench.
The front opens fully up to 1000 mm.
HEPA H14 filtration, with low noise levels.
Dimmable LED lighting.
For applications with large equipment that need extra work space.
