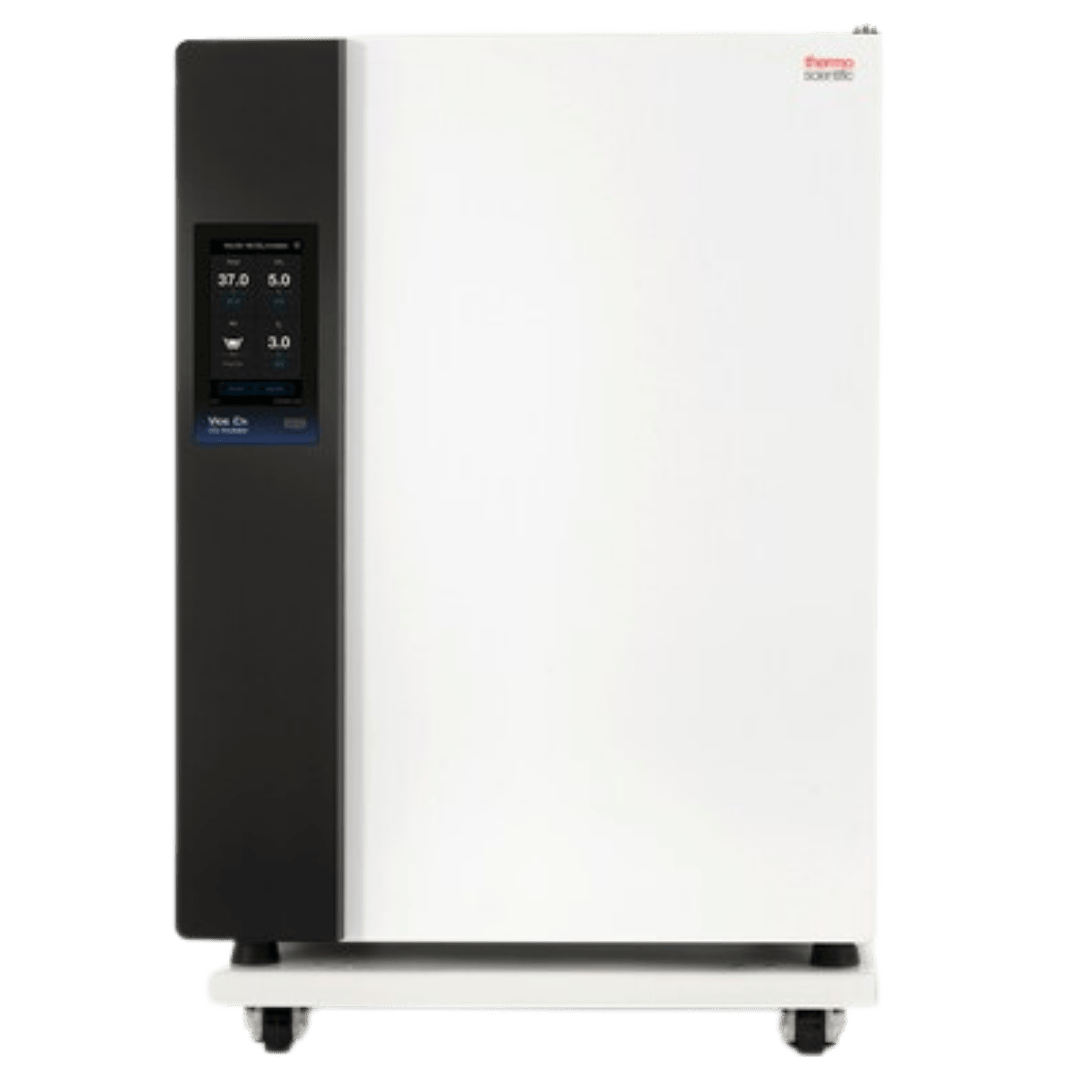

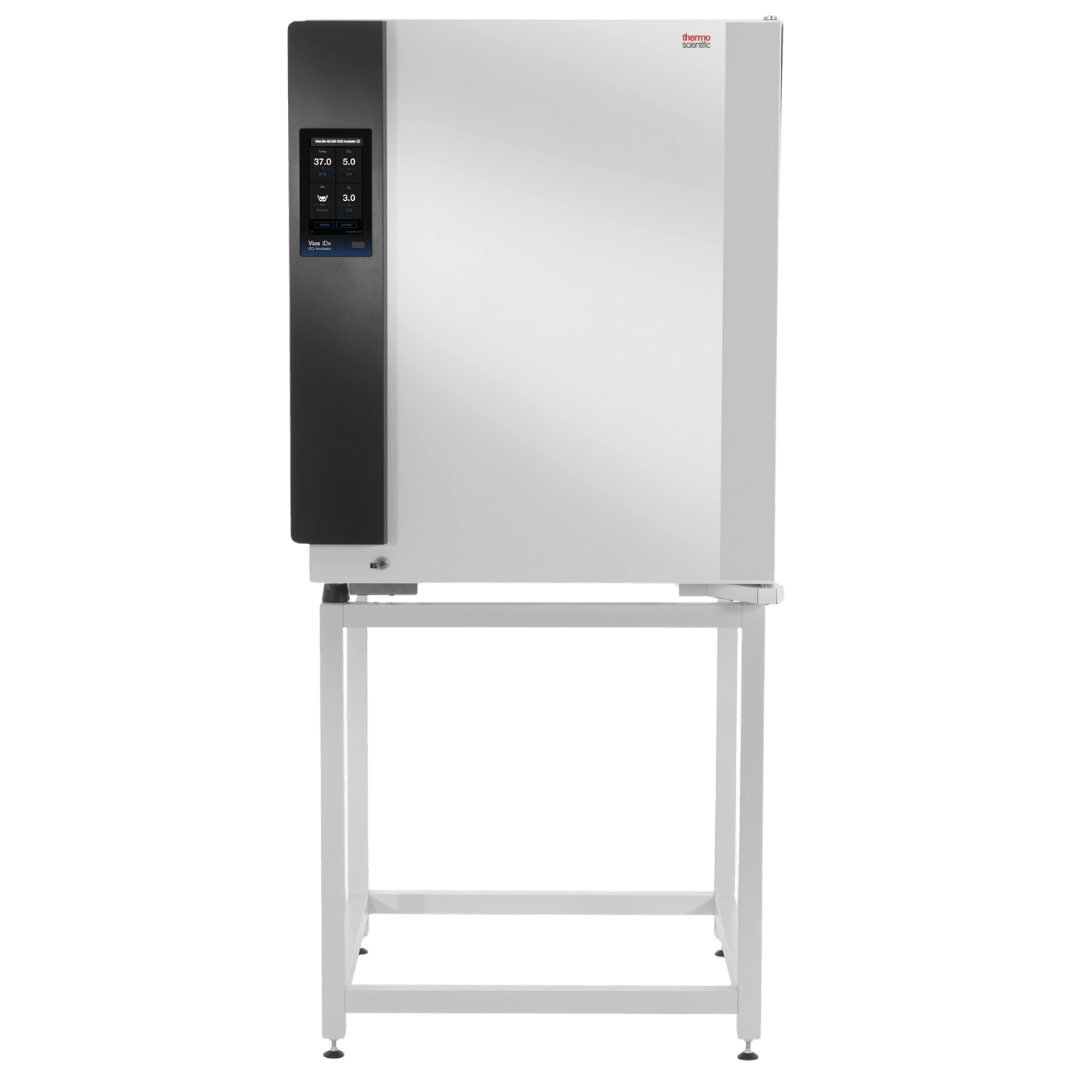

The Thermo Scientific Vios iDx CO2 Incubator is available with 165 or 255 litre gross chamber volume. With THRIVE Active Airflow, HEPA filtration and Steri-Run sterilization, you culture sensitive cells under stable, reproducible conditions with minimal contamination risk.
The Thermo Scientific Vios iDx CO2 Incubator delivers stable culturing conditions for sensitive cell cultures. You choose between a gross chamber volume of 165 or 255 litre, matched to your throughput and available floor space. Additionally, each model combines fast recovery after door openings with a low contamination risk. As a result, your cells grow under constant, reproducible conditions.
The 165 litre model fits ideally in laboratories with limited space and supports Cell Locker Systems for added sample protection. The 255 litre model offers more culturing capacity and accommodates CultiMaxx Shelving Systems for scale-up. Moreover, you stack two incubators with a stacking adapter kit, so you add capacity without extra floor space.
THRIVE Active Airflow technology distributes filtered, conditioned air evenly throughout the chamber. Therefore, all critical growth parameters recover within ten minutes after a 30-second door opening. Moreover, the in-chamber fan maintains a uniform temperature, CO2 concentration and humidity on every shelf.
The in-chamber HEPA filtration reaches ISO Class 5 air quality within five minutes after a 30-second door opening. Subsequently, the system filters the entire chamber volume every 60 seconds. Furthermore, the Steri-Run high-temperature sterilization eliminates microbial contamination with a 12-log sterility assurance at 180 °C across all internal surfaces.
You choose between the IR180Si infrared sensor with silicon MEMS technology or the TC180 sensor for everyday cell culture. The integrated, covered 3-litre water reservoir maximizes relative humidity without condensation. Thus, the chamber stays dry and you limit contamination in the water.
The 7-inch touchscreen displays all chamber conditions at a glance. The electromagnetic door lock protects your samples as standard. Additionally, you select the electropolished stainless steel or 100% pure copper inner chamber. Copper actively combats contamination and stays easy to clean with mild detergent and 70% ethanol.
The Vios iDx CO2 Incubator fits perfectly within the pharmaceutical industry and biotech and medical diagnostics. Want to know how to clean your incubator in line with GMP? Then read our article on CO2 incubator cleaning according to GMP. For advice, get in touch via our Thermo Scientific page.
| Specification | Vios iDx 165 | Vios iDx 255 |
|---|---|---|
| Gross chamber volume | 165 litre (5.8 cu. ft.) | 255 litre (9.0 cu. ft.) |
| External dimensions (w x h x d) | 637 x 900 x 880 mm | 774 x 969 x 934 mm |
| Internal dimensions (w x h x d) | 470 x 607 x 576 mm | 607 x 670 x 629 mm |
| Housing | Powder-coated cold-rolled steel | Powder-coated cold-rolled steel |
| Inner chamber | Electropolished stainless steel or 100% copper | Electropolished stainless steel or 100% copper |
| Shelf dimensions (w x d) | 423 x 465 mm | 560 x 500 mm |
| Shelves | 3 standard / 11 max., perforated, adjustable | 3 standard / 12 max., perforated, adjustable |
| Maximum load per shelf | 10 kg | 10 kg (copper) / 14 kg (stainless steel) |
| Operating weight (without accessories) | 82 kg | 105 kg |
| Temperature control | plus/minus 0.1 °C | plus/minus 0.1 °C |
| Temperature range | 3 °C above ambient to 55 °C | 3 °C above ambient to 55 °C |
| Temperature uniformity | less than plus/minus 0.3 °C | less than plus/minus 0.3 °C |
| CO2 control | plus/minus 0.1% | plus/minus 0.1% |
| CO2 range | 0 to 20% | 0 to 20% |
| O2 control (optional) | plus/minus 0.1%, 1 to 21% or 5 to 90% | plus/minus 0.1%, 1 to 21% or 5 to 90% |
| Humidity at 37 °C | High approx. 93%, low approx. 90% | High approx. 93%, low approx. 90% |
| Sterilization cycle | 180 °C all internal surfaces, up to 12 hours | 180 °C all internal surfaces, up to 12 hours |
| CO2 sensor | IR180Si or TC180 | IR180Si or TC180 |
| Display | 7-inch touchscreen | 7-inch touchscreen |
| Power supply | 230 V, 50/60 Hz | 230 V, 50/60 Hz |
| Connectivity | Front USB port, OPC-UA, optional 4-20 mA | Front USB port, OPC-UA, optional 4-20 mA |
The main difference is capacity: the 165 litre model is more compact and supports Cell Locker Systems, whereas the 255 litre model offers more culturing space and accommodates CultiMaxx Shelving Systems. Both models share the same proven platform.
You choose between the IR180Si infrared sensor and the TC180 sensor. The IR180Si is recommended for GMP environments and studies with frequent door openings, whereas the TC180 performs excellently for everyday cell culture.
Stainless steel reduces bacterial attachment through electropolishing and is robust. Copper actively combats contamination through oxidation and stays easy to clean. Therefore, you choose copper mainly in busy research laboratories.
Thanks to THRIVE Active Airflow, all critical growth parameters recover within ten minutes after a 30-second door opening. Moreover, the HEPA filtration reaches ISO Class 5 air quality within five minutes.

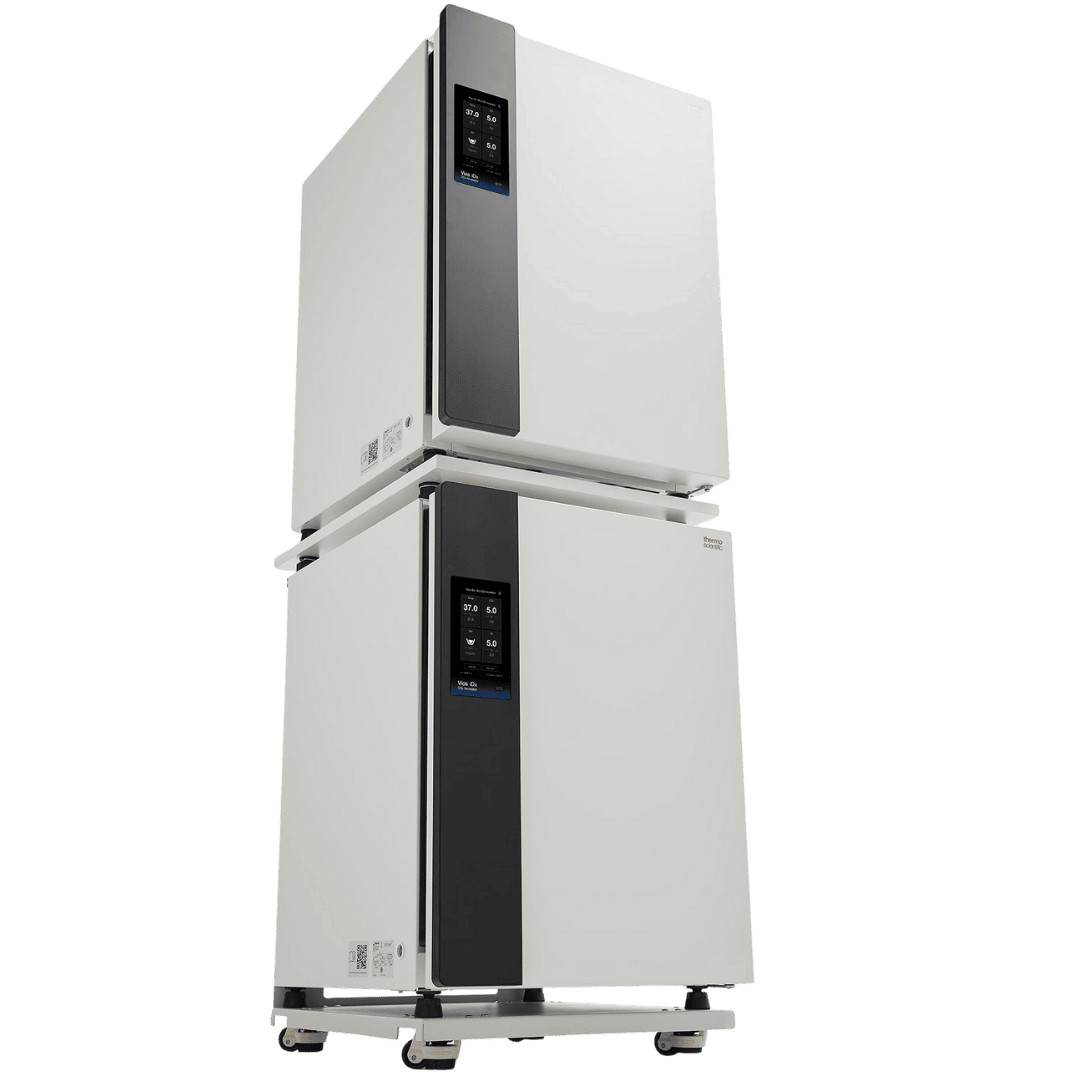

Yes, you stack two incubators using a stacking adapter kit and roller base. Thus, you increase culturing capacity without taking up additional floor space.
